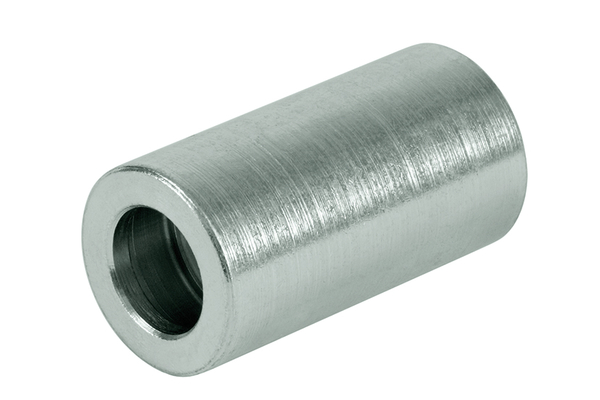

XJ04HS
XJ..HS

Product info

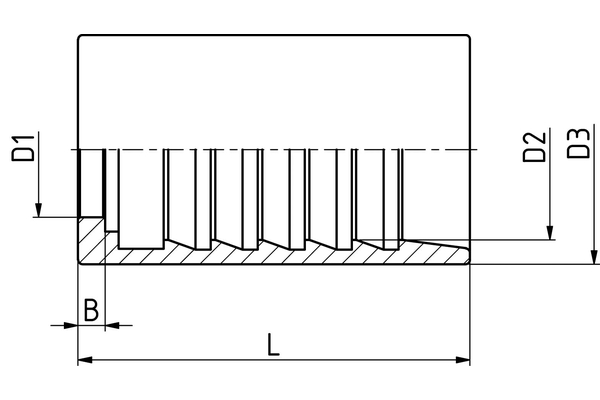

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  D2 [mm]:	20,0
  Thread + standard:	Swage ferrule for TP10HS
  L [mm]:	38,2
  D [mm]:	11,7
  D1 [mm]:	14,6
  Connection name Indunorm:	XJ..HS
  Material:	Free cutting steel
  Material:	free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	700 bar hydraulic tool series XJ
  application:	Ferrule, no-skive
