HIR

Similar image
Similar image

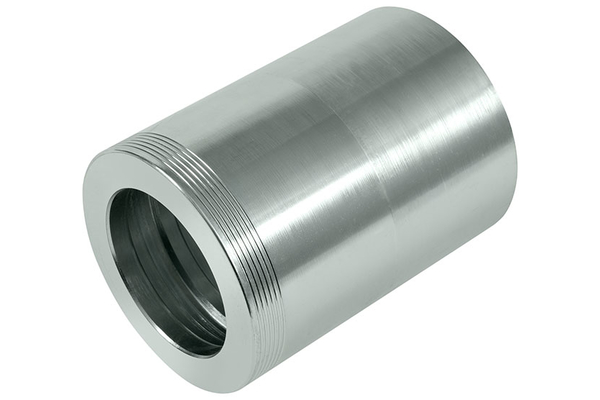

Swage ferrule with pull-out protection, internal and external skive, for R15 (DN38) and R13 (DN51)

To accessories

Detail

Art. No.
HIR24
%
SALE
HIR32
%
SALE
DN
38
51
Size
24
32
Inch
1.1/2
2

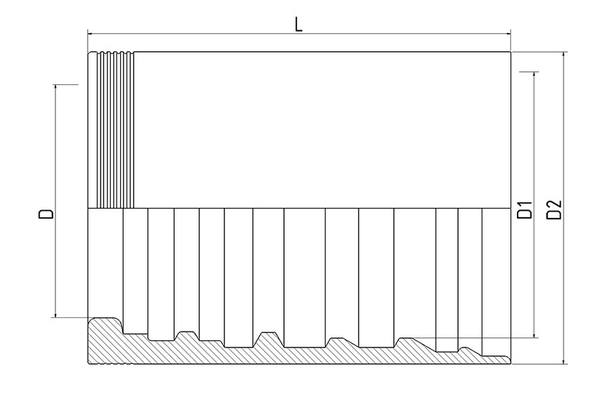

D2 [mm]
71,0
88,2
Thread + standard
Swage ferrule with pull-out protection, internal and external skive, for R15 (DN38) and R13 (DN51)
Swage ferrule with pull-out protection, internal and external skive, for R15 (DN38) and R13 (DN51)
L [mm]
96,0
110,0
D [mm]
48,5
64,8
D1 [mm]
58,8
76,8
Quantity


Product info

  • Technical data
    Connection name Indunorm: HIR
    Material: Free cutting steel
    Material: steel
    Surface: zinc plated, chrom 6-free
    Type of fittings: Multi spiral series HI
    application: skive ferrule
