Art. No.: HIR24
List number: 04251100

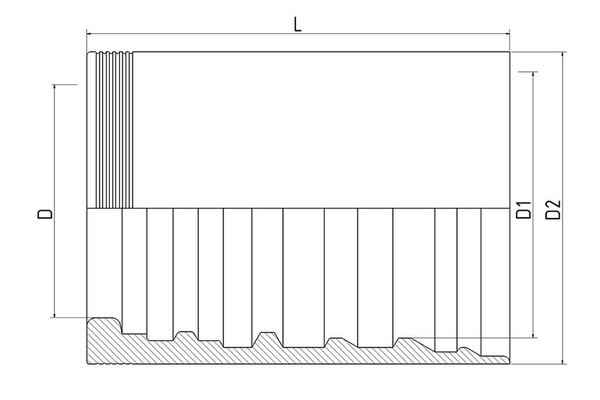

Swage ferrule with pull-out protection, internal and external skive, for R15 (DN38) and R13 (DN51)
| DN: | 38 |
| Size: | 24 |
| Inch: | 1.1/2 |
| D2 [mm]: | 71,0 |
| Thread + standard: | Swage ferrule with pull-out protection, internal and external skive, for R15 (DN38) and R13 (DN51) |
| L [mm]: | 96,0 |
| D [mm]: | 48,5 |
| D1 [mm]: | 58,8 |
| Connection name Indunorm: | HIR |
| Material: | Free cutting steel |
| Material: | steel |
| Surface: | zinc plated, chrom 6-free |
| Type of fittings: | Multi spiral series HI |
| application: | skive ferrule |
Reserve technical changes.
