HV08
HV

Product info

• Specifications

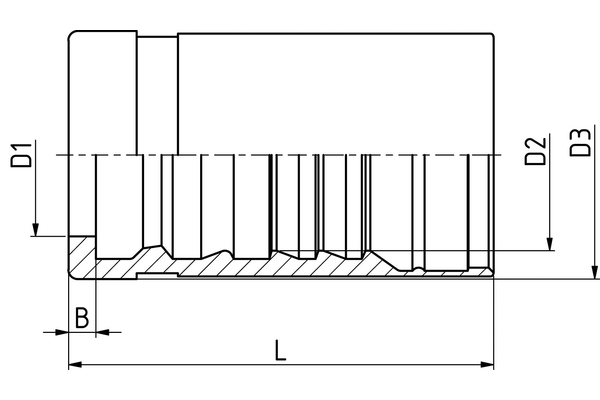

  DN:	12
  Size:	08
  Inch:	1/2
  D2 [mm]:	29,0
  L [mm]:	47,0
  b [mm]:	3,0
  D [mm]:	16,8
  D1 [mm]:	21,7
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
  application:	skive ferrule
