HV

Similar image
Similar image

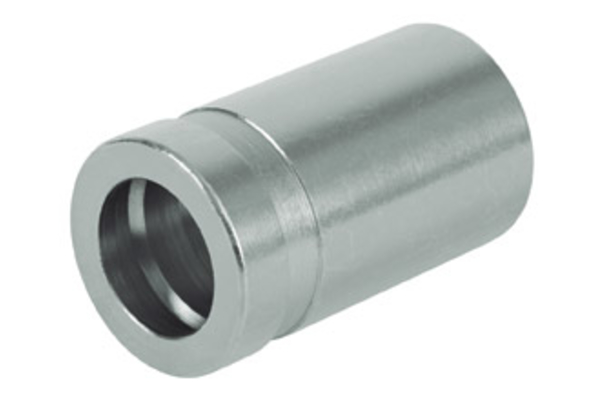

Swage ferrule with pull-out protection, internal and external skive, for 4SP, 4SH and R15 (DN19 and 25). Please refer to the current press crimping tables for details.

To accessories

Detail

Art. No.
HV06
%
SALE
HV08
%
SALE
HV10
%
SALE
HV12
%
SALE
HV16
%
SALE
HV20
%
SALE
DN
10
12
16
19
25
31
Size
06
08
10
12
16
20
Inch
1/4
1/2
5/8
3/4
1
1.1/4

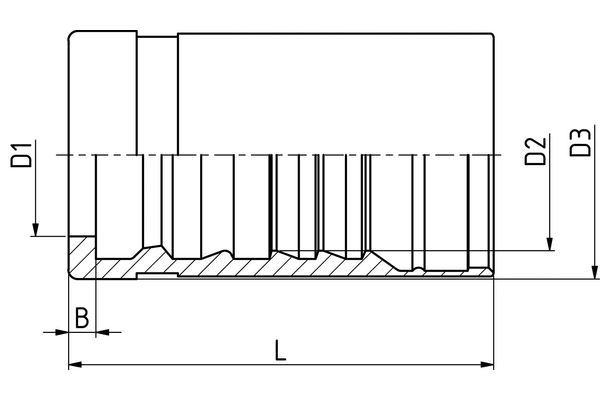

D2 [mm]
27,0
29,0
34,2
38,8
50,0
55,6
Thread + standard
Swage ferrule with pull-out protection, internal and external skive, for 4SP16
Swage ferrule with pull-out protection, internal and external skive, for 4SP (16), 4SH (DN 16 – 31) R15 (DN 19 and 25)
Swage ferrule with pull-out protection, internal and external skive, for 4SP (16), 4SH (DN 16 – 31) R15 (DN 19 and 25)
Swage ferrule with pull-out protection, internal and external skive, for 4SP (16), 4SH (DN 16 – 31) R15 (DN 19 and 25)
L [mm]
41,0
47,0
55,0
68,0
73,0
81,0
b [mm]
3,0
3,0
3,5
4,4
4,4
4,9
D [mm]
14,4
16,8
23,4
26,0
31,9
37,5
D1 [mm]
19,8
21,7
27,0
30,6
39,0
44,8
Quantity


Product info

  • Specifications
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Multispiral series HV
    application: skive ferrule
