HV10
HV

Product info

• Specifications

  DN:	16
  Size:	10
  Inch:	5/8

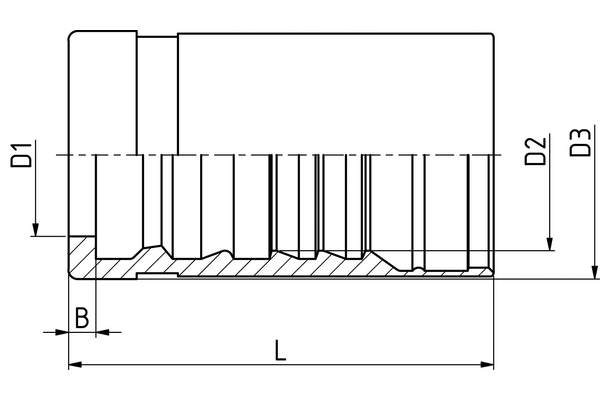

  D2 [mm]:	34,2
  Thread + standard:	Swage ferrule with pull-out protection, internal and external skive, for 4SP16
  L [mm]:	55,0
  b [mm]:	3,5
  D [mm]:	23,4
  D1 [mm]:	27,0
  Connection name Indunorm:	HV
  Material:	Free cutting steel
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
  application:	skive ferrule
