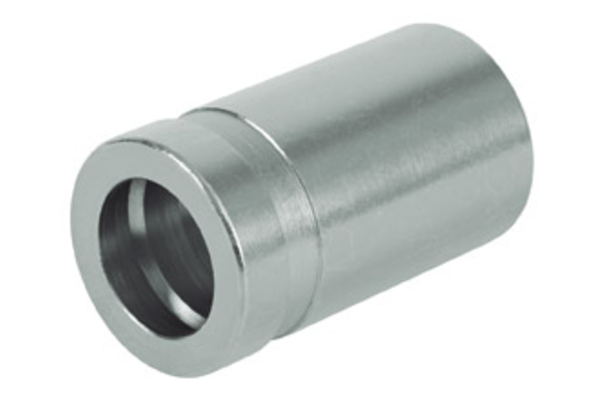

HV16
HV

Product info

• Specifications

  DN:	25
  Size:	16
  Inch:	1

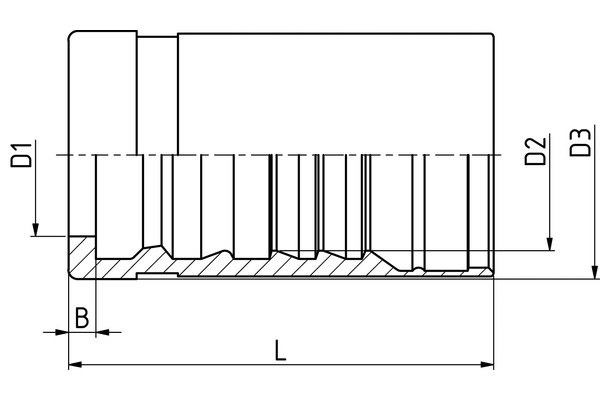

  D2 [mm]:	50,0
  Thread + standard:	Swage ferrule with pull-out protection, internal and external skive, for 4SP (16), 4SH (DN 16 – 31) R15 (DN 19 and 25)
  L [mm]:	73,0
  b [mm]:	4,4
  D [mm]:	31,9
  D1 [mm]:	39,0
  Connection name Indunorm:	HV
  Material:	Free cutting steel
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
  application:	skive ferrule
