1SN20

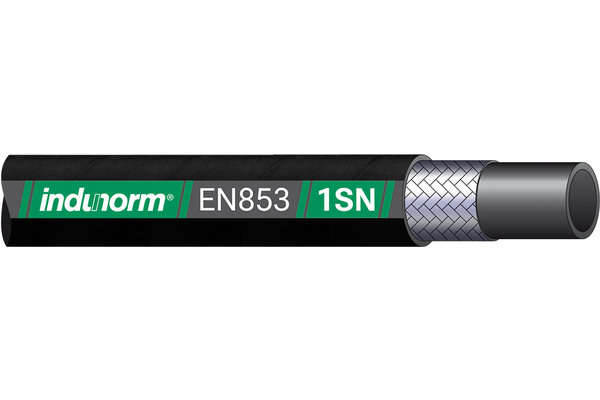

Braided hose 1SN

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Outer Ø [mm]:	27,1
  Inner Ø [mm]:	19,5
  bending radius [mm]:	240
  working pressure [bar]:	105
  burst pressure [bar]:	420
  Safety factor:	4:1

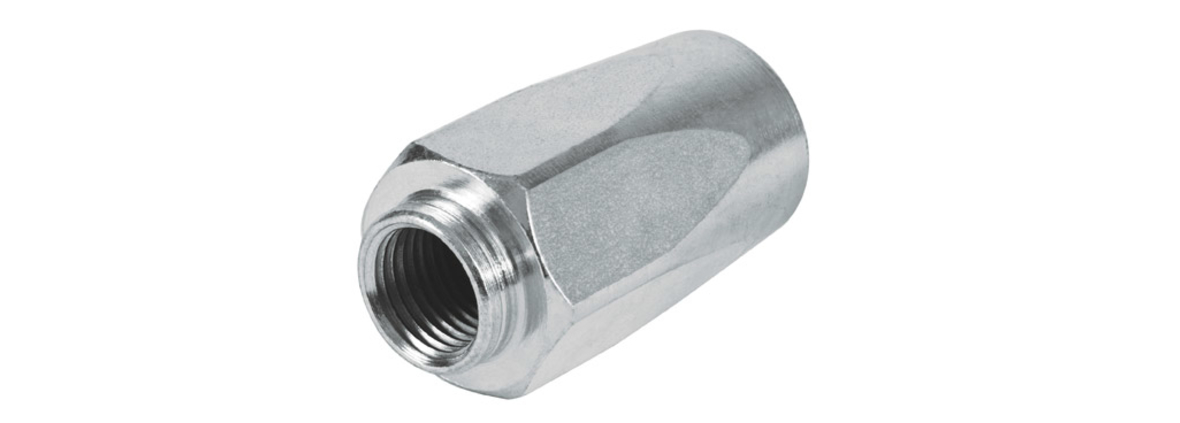

  Standard ferrule:	XVN12
  Standard ferrule stainless steel:	XP-P5-12VA
  Weight [kg]:	0,560
  Static test pressure [bar]:	210
  Outer Ø max. [mm]:	27,7
  Braid diameter [mm]:	25,0
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 853 - 1SN
  Reinforcement:	1 layer of high tensile steel wire
  Temperature range [°C]:	- 40 ° C to + 100 ° C
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	1
