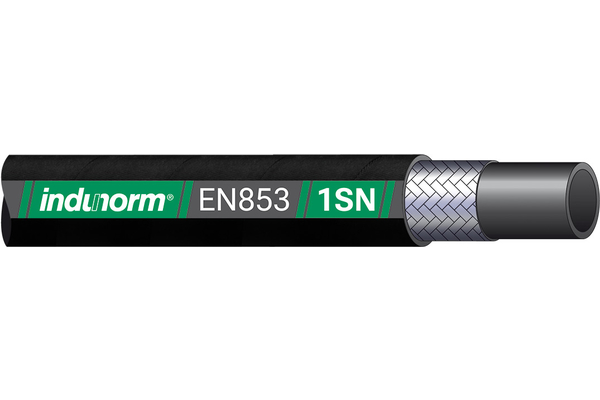

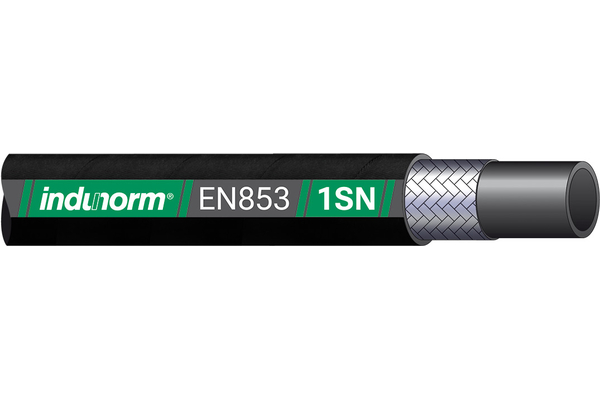

Braided Hose 1SN (EN 853 - 1SN)

Hydraulic hose for medium pressure applications, according to EN 853 - 1SN

To accessories

Detail

Art. No.

1SN05

1SN06

1SN08

1SN10

1SN12

1SN16

1SN20

1SN25

1SN32

1SN40

1SN50

Size

Inch

3/16

1/4

5/16

3/8

1/2

5/8

3/4

1.1/4

1.1/2

Outer Ø [mm]

13,0

14,7

16,8

20,0

23,2

27,1

35,1

42,5

50,1

64,1

Inner Ø [mm]

4,8

6,7

8,3

9,9

13,0

16,4

19,5

26,0

32,5

38,7

51,1

bending radius [mm]

100

115

125

180

200

240

300

420

500

630

working pressure [bar]

250

225

215

180

160

130

105

burst pressure [bar]

1000

900

860

720

640

520

420

352

252

200

160

Safety factor

4:1

Standard ferrule

XV03C

XVN04

XVN05

XVN06

XVN08

XVN10

XVN12

XVN16

XVN20

XVN24

XVN32

Standard ferrule stainless steel

XP-P5-04VA

XP-P5-05VA

XP-P5-06VA

XP-P5-08VA

XP-P5-10VA

XP-P5-12VA

XP-P5-16VA

XP-P1-20VA

XP-P1-24VA

XP-P1-32VA

Weight [kg]

0,190

0,220

0,280

0,360

0,440

0,560

0,830

1,070

1,420

2,01

Static test pressure [bar]

500

450

430

360

320

260

210

176

150

100

hose length [m]

4:1

Outer Ø max. [mm]

11,8

13,4

15,0

17,4

20,6

23,7

27,7

35,6

43,5

50,6

64,0

Braid diameter [mm]

10,9

12,5

14,8

17,9

21,0

25,0

32,9

39,9

46,5

59,9

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 853 - 1SN
Reinforcement:	1 layer of high tensile steel wire
Temperature range [°C]:	- 40 ° C to + 100 ° C
application:	high pressure applications
max operating temperature [°C]:	+100°C
number of layers:	1

Accessories

For special applications with difficult conditions skiving-ferrules are available. For details, please refer to our current crimping-charts. In addition to the swage-fittings, we offer a wide range of screw fittings for manual assembly.
