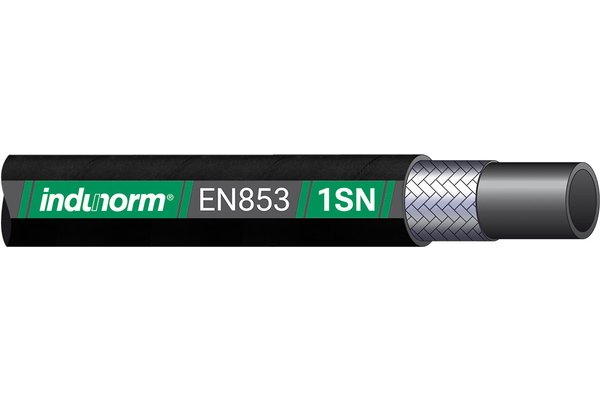

1SN25
Braided hose 1SN

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Outer Ø [mm]:	35,1
  Inner Ø [mm]:	26,0
  bending radius [mm]:	300
  working pressure [bar]:	88
  burst pressure [bar]:	352
  Safety factor:	4:1
  Standard ferrule:	XVN16
  Standard ferrule stainless steel:	XP-P5-16VA
  Weight [kg]:	0,830
  Static test pressure [bar]:	176
  hose length [m]:	4:1
  Outer Ø max. [mm]:	35,6
  Braid diameter [mm]:	32,9
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 853 - 1SN
  Reinforcement:	1 layer of high tensile steel wire
  Temperature range [°C]:	- 40 ° C to + 100 ° C
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	1
