Product info
-
Technical data

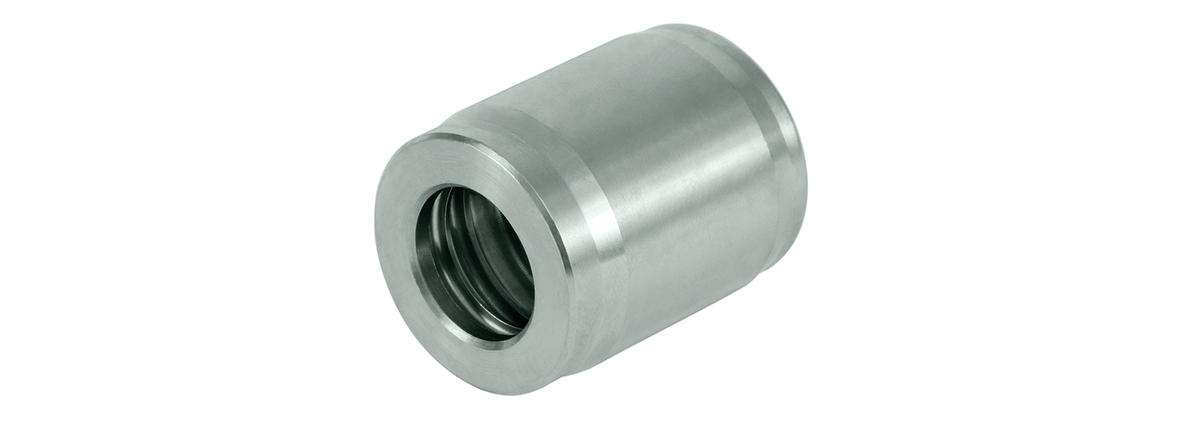

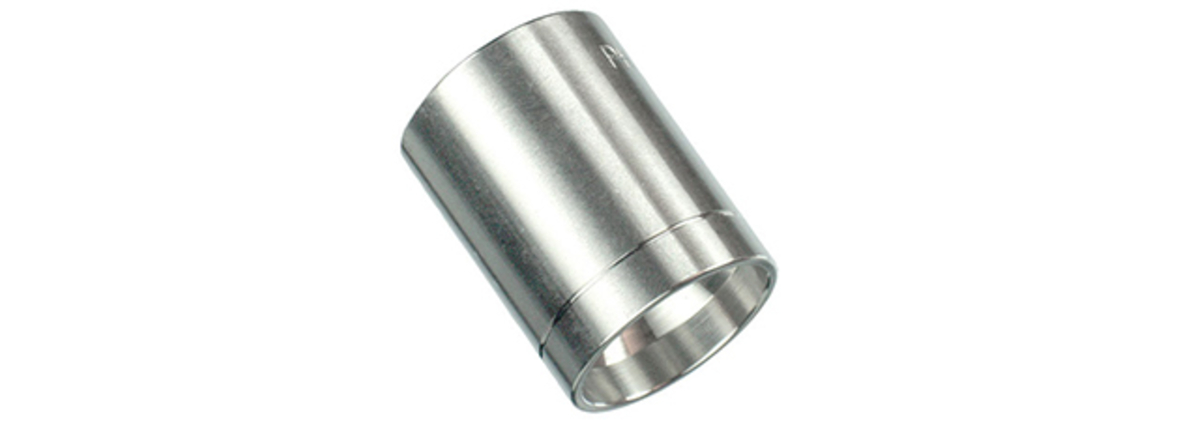

DN: 31 Size: 20 Inch: 1.1/4 Outer Ø [mm]: 42,5 Inner Ø [mm]: 32,5 bending radius [mm]: 420 working pressure [bar]: 63 burst pressure [bar]: 252 Safety factor: 4:1 Standard ferrule: XVN20 Standard ferrule stainless steel: XP-P1-20VA Weight [kg]: 1,070 Static test pressure [bar]: 150 Outer Ø max. [mm]: 43,5 Braid diameter [mm]: 39,9 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 853 - 1SN Reinforcement: 1 layer of high tensile steel wire Temperature range [°C]: - 40 ° C to + 100 ° C application: high pressure applications max operating temperature [°C]: +100°C number of layers: 1
