2SSC16

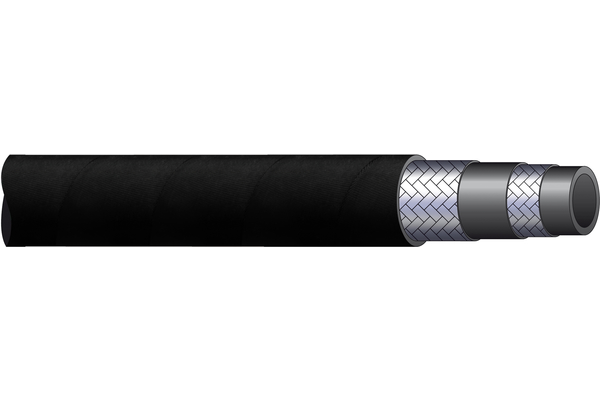

Braided hose 2SC (EN 857 - 2SSC)

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Outer Ø [mm]:	24,0
  Inner Ø [mm]:	16,4
  bending radius [mm]:	170
  working pressure [bar]:	275
  burst pressure [bar]:	1100
  Safety factor:	4:1
  Weight [kg]:	0,68
  Static test pressure [bar]:	550
  Braid diameter [mm]:	21,9
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber with UHMPE film, no abrasion
  Inner tube:	Synthetic rubber
  MSHA-Approval:	yes
  Media:	Hydraulic oil based on mineral oil, oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 857 - 2SC
  Reinforcement:	high tensile steel wire braid
  Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
