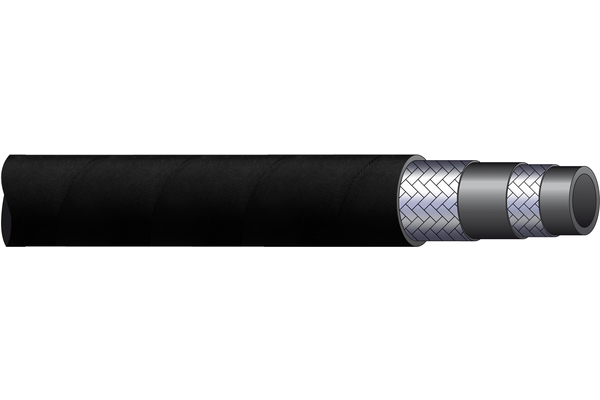

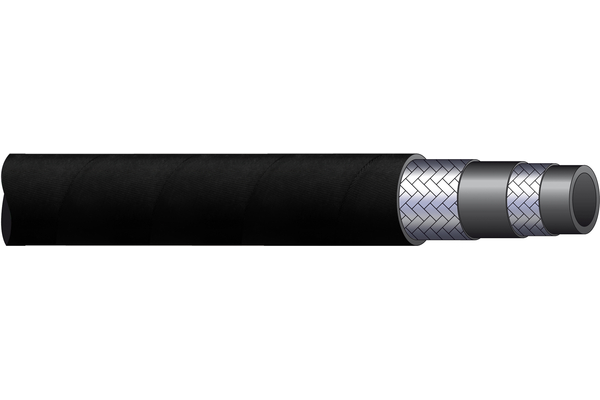

Braided Hose 2SSC (EN 857 - 2SC)

Hydraulic hose for high pressure applications, according to EN 857 - 2SC

To accessories

Detail

Art. No.

2SSC06

2SSC08

2SSC10

2SSC12

2SSC16

2SSC20

2SSC25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

13,0

14,6

17,1

20,0

24,0

27,5

35,8

Inner Ø [mm]

6,6

8,3

9,9

13,0

16,4

19,5

26,0

bending radius [mm]

130

170

200

250

working pressure [bar]

400

375

350

300

275

235

185

burst pressure [bar]

1600

1500

1400

1200

1100

940

740

Safety factor

4:1

Weight [kg]

0,26

0,32

0,37

0,45

0,68

0,81

1,19

Static test pressure [bar]

800

750

700

600

550

470

370

Braid diameter [mm]

11,0

12,7

14,7

18,0

21,9

25,6

32,9

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber with UHMPE film, no abrasion
Inner tube:	Synthetic rubber
MSHA-Approval:	yes
Media:	Hydraulic oil based on mineral oil, oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 857 - 2SC
Reinforcement:	high tensile steel wire braid
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
application:	high pressure applications
max operating temperature [°C]:	+100°C
number of layers:	2
