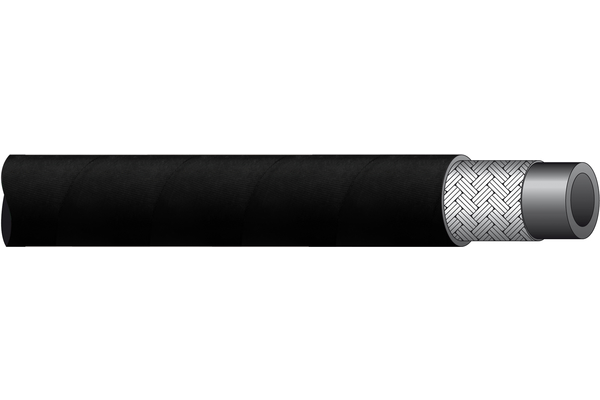

Braided Hose 2TE RAIL HOSE

Black, abrasion-resistant hydraulic hose with a textile insert, according to EN 854 - 2TE... Complies with EN 45545-2 (for hazard level HL1 - HL2 requirement set R22 and R23).

To accessories

Detail

Art. No.

2TE06RH

2TE08RH

2TE10RH

2TE12RH

2TE16RH

Size

Inch

1/4

bending radius [mm]

working pressure [bar]

burst pressure [bar]

300

272

252

232

200

Safety factor

4:1

Standard ferrule

XVTE04

XVTE05

XVTE06

XVTE08

XV10D/4L

Weight [kg]

0,134

0,152

0,181

0,212

0,287

Static test pressure [bar]

150

136

126

116

Inner diameter min [mm]

6,4

7,9

9,5

12,7

15,8

outer diameter min [mm]

12,3

14,1

15,7

18,7

22,8

Outer Ø max. [mm]

13,9

15,7

17,3

20,7

24,9

Inner diameter max [mm]

6,9

8,4

10,0

13,3

16,5

Quantity

Product info

Technical data

Approvals:	EN854, EN 45545-2
Color cover:	black
Color inner tube:	black
Cover:	Abrasion and ozone resistant synthetic rubber
Inner tube:	Oil resistant synthetic rubber
MSHA-Approval:	no
Media:	hydraulic oil (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Norm/Standards:	EN854 2TE
Reinforcement:	One high tensile textile braid
Temperature range [°C]:	-40 ° C to +100 ° C, water and water-based media up to max. +70 ° C;
application:	Rail transport and track laying machines requiring EN 45545-2
max operating temperature [°C]:	+100°C
number of layers:	2

Accessories

STOPFLEX TEXS with velcro

Practical tip

When laying the hose line make sure to comply with the minimum bending radius. Falling below this value can lead to significantly shortened service life.
