2TE16RH

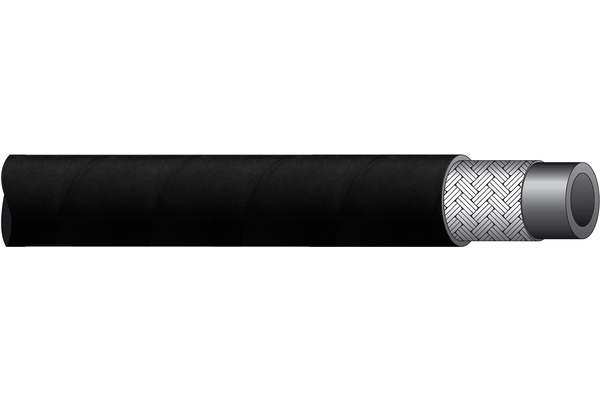

Textile hose 2TE RAIL HOSE

Product info

• Technical data

  DN:	16
  Size:	10
  bending radius [mm]:	90
  working pressure [bar]:	50
  burst pressure [bar]:	200
  Safety factor:	4:1
  Standard ferrule:	XV10D/4L
  Weight [kg]:	0,287
  Inner diameter min [mm]:	15,8
  outer diameter min [mm]:	22,8
  Outer Ø max. [mm]:	24,9
  Inner diameter max [mm]:	16,5
  Approvals:	EN854, EN 45545-2
  Color cover:	black
  Color inner tube:	black
  Cover:	Abrasion and ozone resistant synthetic rubber
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	hydraulic oil (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
  Norm/Standards:	EN854 2TE
  Reinforcement:	One high tensile textile braid
  Temperature range [°C]:	-40 ° C to +100 ° C, water and water-based media up to max. +70 ° C;
  application:	Rail transport and track laying machines requiring EN 45545-2
  max operating temperature [°C]:	+100°C
  number of layers:	2
