SP-COMPACTPLUS2-25RH

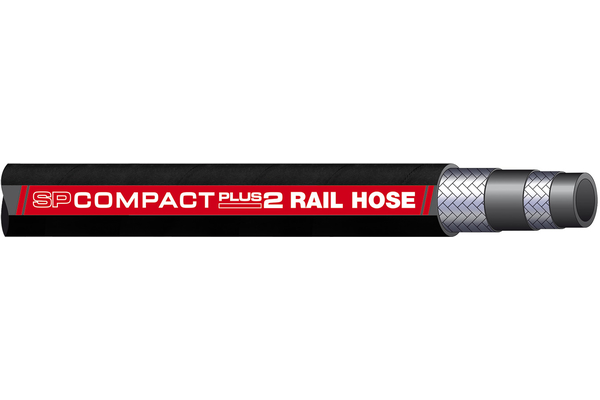

Braided hose SUPER-POWER® SP-COMPACTplus2 RAIL HOSE

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Outer Ø [mm]:	35,6
  Inner Ø [mm]:	26,0
  bending radius [mm]:	210
  working pressure [bar]:	210
  burst pressure [bar]:	840
  Safety factor:	4:1
  Standard ferrule:	XVN16
  Weight [kg]:	1,15
  Static test pressure [bar]:	420
  Outer Ø max. [mm]:	36,6
  Braid diameter [mm]:	32,9
  Approvals:	EN857, EN 45545-2
  Color cover:	black
  Color inner tube:	black
  Cover:	Abrasion and ozone resistant synthetic rubber
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	hydraulic oil (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
  Norm/Standards:	EXCEEDS EN 857 - 2SC. Meets EN 45545-2 (HL2-R23)
  Reinforcement:	steel wire braid, optimized quality with high tensile strength
  Temperature range [°C]:	-40 ° C to +100 ° C, water and water-based media up to max. +70 ° C;
  application:	Rail transport and track laying machines requiring EN 45545-2
  max operating temperature [°C]:	+100°C
  number of layers:	2
