SP-COMPACTPLUS2-12

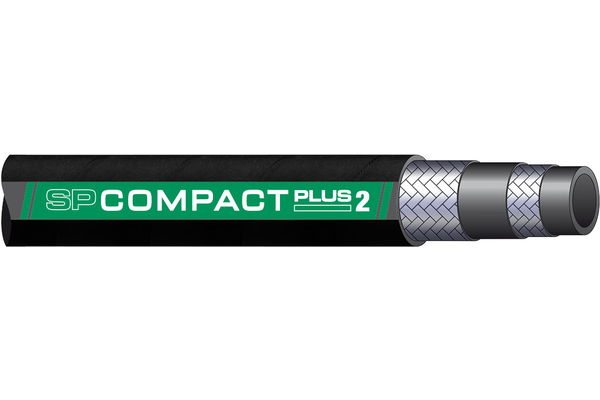

Braided hose SP-COMPACTplus2

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  bending radius [mm]:	90
  working pressure [bar]:	345
  burst pressure [bar]:	1380
  Safety factor:	4:1
  Standard ferrule:	XVN08
  Standard ferrule stainless steel:	XP-P5-08VA
  Static test pressure [bar]:	690
  Outer Ø max. [mm]:	21,5
  Color cover:	black
  Color inner tube:	black
  Cover:	Special-Synthetic rubber, wear resistant
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	water and water-based media up to max. +70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EXCEEDS EN 857 - 2SC
  Reinforcement:	steel wire braids, optimized quality with high tensile strength
  Temperature range [°C]:	-40 ° C to +100 ° C, water and water-based media up to max. +70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
