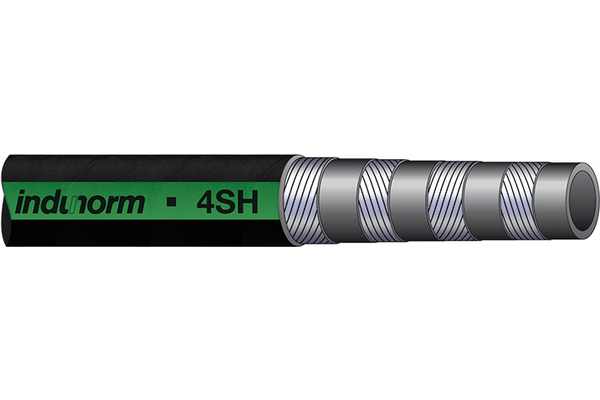

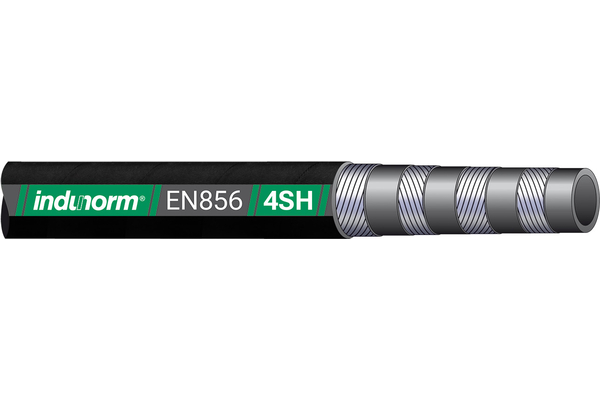

Spiral Hose 4SH (EN 856 - 4SH)

Hydraulic hose for maximum pressure range, according to EN 856 - 4SH

To accessories

Detail

Art. No.

4SH20

4SH25

4SH32

4SH40

4SH50

Size

Inch

3/4

1.1/4

1.1/2

bending radius [mm]

280

340

460

560

700

working pressure [bar]

420

380

350

290

250

burst pressure [bar]

1680

1520

1400

1160

1100

Safety factor

4:1

Standard ferrule

HV12

HV16

HV20

HI24

HI32

Static test pressure [bar]

840

760

650

580

500

Outer Ø max. [mm]

32,2

38,7

45,5

53,5

68,1

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant, black
Inner tube:	Synthetic rubber, black
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 856 - 4SH
Reinforcement:	4 high tensile steel spirals
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
application:	High pressure applications
max operating temperature [°C]:	+100°C
number of layers:	DN19-31 = 4, DN38-51 = 6

Benefit

The matched hose and fitting system Joint-Fit guarantees highest application safety, especially in case of pressure peaks and applications with pulsating pressures.

Accessories

Z4-circle knife, TEXS, STOPFLEX

Practical tip

The use of the Z4 circular knife in your cutter ensures the highest cutting precision. For hammer use, we recommend using our PV Hammer fittings from the multispiral series HV. Currently available for DN19 to DN31."
