Product info
-
Technical data

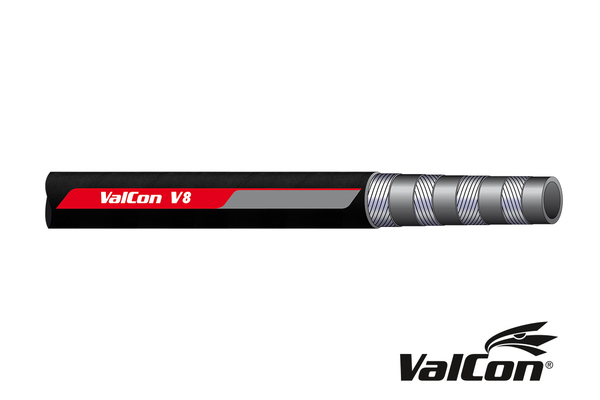

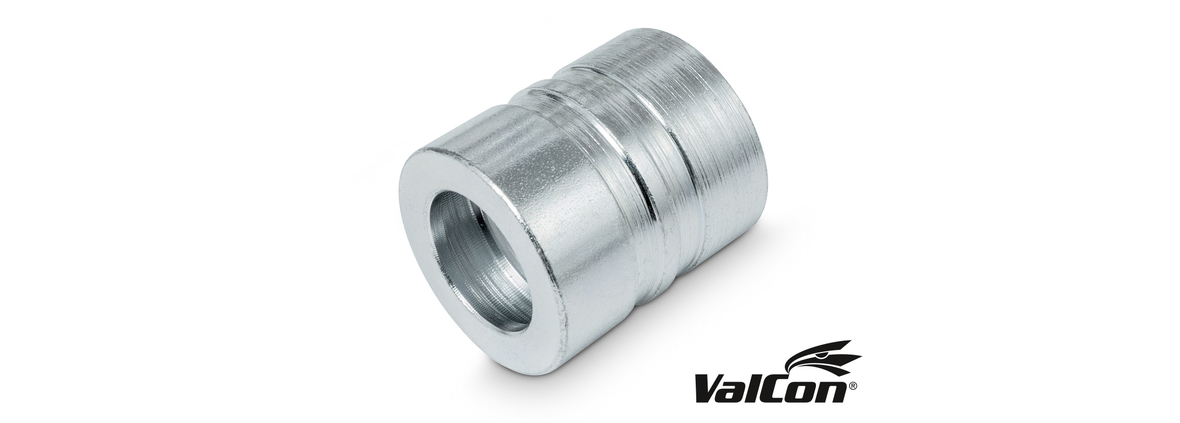

DN: 10 Size: 6 Inch: 3/8 Inner Ø [mm]: 9,5 bending radius [mm]: 180 working pressure [bar]: 445 burst pressure [bar]: 1780 Safety factor: 4:1 Standard ferrule: VC4-06 Weight [kg]: 0,75 Static test pressure [bar]: 890 Braid diameter max [mm]: 18,1 outer diameter tolerance plus [mm]: 20,6 Braid diameter min [mm]: 16,9 outer diameter min [mm]: 20,6 Outer Ø max. [mm]: 22,2 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: water and water-based media up to max. +70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 856 - 4SP Reinforcement: High tensile steel spirals Temperature range [°C]: - 40 °C to + 100 °C, water and water-based media up to + 70 °C application: High pressure applications max operating temperature [°C]: +100°C number of layers: 4
