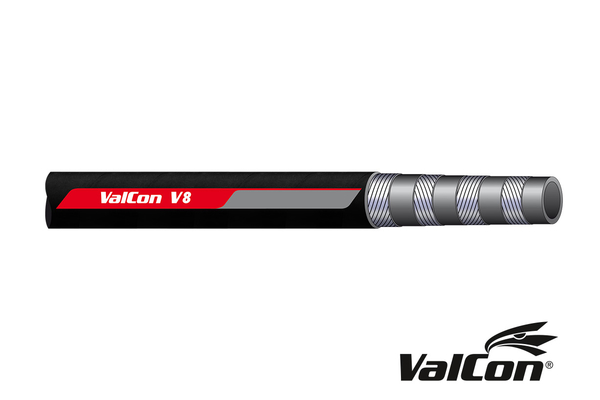

Valcon® Spiral Hose V8-4SP

Hydraulic hose for high pressure applications, according to EN 856 - 4SP

To accessories

Detail

Art. No.

V8-4SP10

V8-4SP12

V8-4SP16

V8-4SP20

V8-4SP25

Size

Inch

3/8

1/2

5/8

3/4

Inner Ø [mm]

9,5

12,7

15,9

19,0

25,4

bending radius [mm]

180

230

250

300

340

working pressure [bar]

445

415

350

280

burst pressure [bar]

1780

1660

1400

1120

Safety factor

4:1

Standard ferrule

VC4-06

VC4-08

VC4-10

VC4-12

VC4-16

Weight [kg]

0,75

0,90

1,10

1,50

2,00

Static test pressure [bar]

890

830

700

560

Braid diameter max [mm]

18,1

21,0

24,6

29,0

36,1

outer diameter tolerance plus [mm]

20,6

23,8

27,4

31,4

38,5

Braid diameter min [mm]

16,9

19,4

23,0

27,4

34,5

outer diameter min [mm]

20,6

23,8

27,4

31,4

38,5

Outer Ø max. [mm]

22,2

25,4

29,0

33,0

40,9

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	water and water-based media up to max. +70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 856 - 4SP
Reinforcement:	High tensile steel spirals
Temperature range [°C]:	- 40 °C to + 100 °C, water and water-based media up to + 70 °C
application:	High pressure applications
max operating temperature [°C]:	+100°C
number of layers:	4
