Product info
-
Technical data

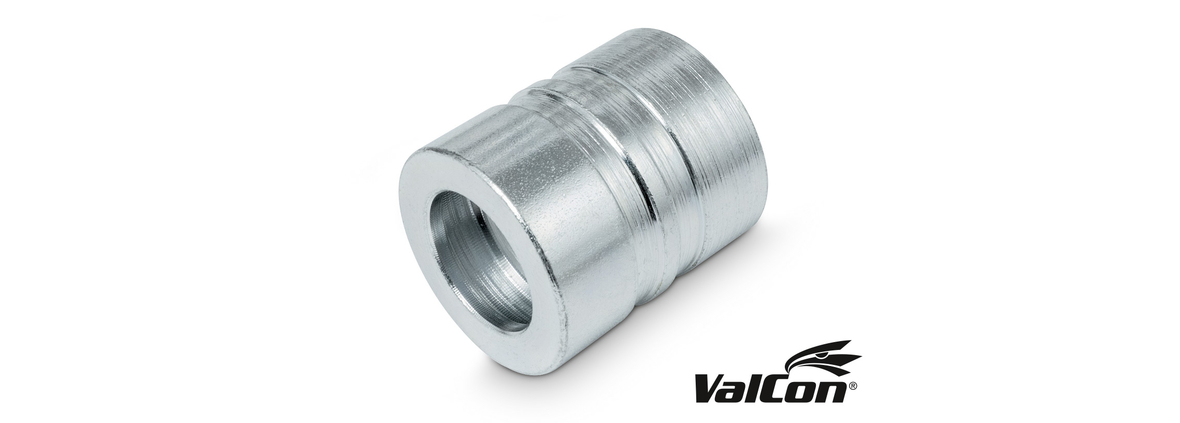

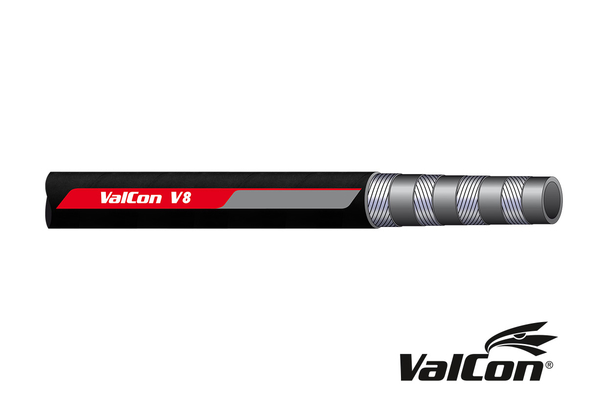

DN: 12 Size: 8 Inch: 1/2 Inner Ø [mm]: 12,7 bending radius [mm]: 230 working pressure [bar]: 415 burst pressure [bar]: 1660 Safety factor: 4:1 Standard ferrule: VC4-08 Weight [kg]: 0,90 Static test pressure [bar]: 830 Braid diameter max [mm]: 21,0 outer diameter tolerance plus [mm]: 23,8 Braid diameter min [mm]: 19,4 outer diameter min [mm]: 23,8 Outer Ø max. [mm]: 25,4 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: water and water-based media up to max. +70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 856 - 4SP Reinforcement: High tensile steel spirals Temperature range [°C]: - 40 °C to + 100 °C, water and water-based media up to + 70 °C application: High pressure applications max operating temperature [°C]: +100°C number of layers: 4
