Product info
-
Technical data

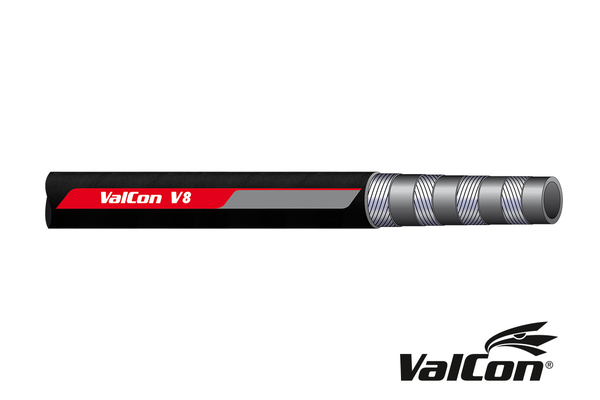

DN: 25 Size: 16 Inch: 1 Inner Ø [mm]: 25,4 bending radius [mm]: 340 working pressure [bar]: 280 burst pressure [bar]: 1120 Safety factor: 4:1 Standard ferrule: VC4-16 Weight [kg]: 2,00 Static test pressure [bar]: 560 Braid diameter max [mm]: 36,1 outer diameter tolerance plus [mm]: 38,5 Braid diameter min [mm]: 34,5 outer diameter min [mm]: 38,5 Outer Ø max. [mm]: 40,9 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: water and water-based media up to max. +70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 856 - 4SP Reinforcement: High tensile steel spirals Temperature range [°C]: - 40 °C to + 100 °C, water and water-based media up to + 70 °C application: High pressure applications max operating temperature [°C]: +100°C number of layers: 4
