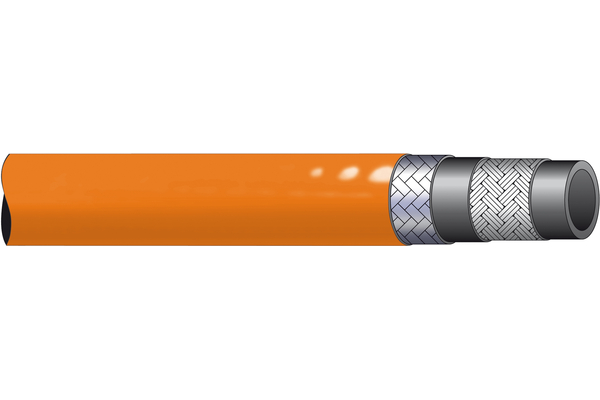

700 bar hose for hydraulic tools TP10HS-NC (non-conductive)

Non-conductive high-pressure hose for rescue equipment, lifting tools and tool hydraulics. Accurate control of your hydraulics in the most extreme working conditions due to high pulse strength and low expansion of Indunorm TP hoses. Our TP hoses are characterized by high weather and age resistance and abrasion resistance.

To accessories

Detail

Art. No.

TP10HS/NC04

TP10HS/NC06

Size

Inch

1/8

1/4

Outer Ø [mm]

9,1

14,0

Inner Ø [mm]

4,0

6,6

bending radius [mm]

working pressure [bar]

700

burst pressure [bar]

2800

Safety factor

4:1

Standard ferrule

XJ02HL

XJ04HL

Standard ferrule stainless steel

XJ02HL

XJ04HL

Weight [kg]

0,59

0,143

Static test pressure [bar]

1400

Vacuum [bar]

0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg

Quantity

Product info

Technical data

Color cover:	orange
Color inner tube:	black
Cover:	Polyurethan, non conductive
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	water and water-based media up to max. + 70 ° C; Mineral oils and fluids based on phosphate ester-based hydraulic oils
Norm/Standards:	The hose meets the SAE J517 / J343 and EN855 standards for nonconductivity, where a maximum electrical leakage of 50 μA is not allowed when a 152 mm long sample is charged with 37.5 KV for 5 minutes. Corresponds to 250 KV / meter.
Reinforcement:	2 layers of Aramid fiber
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C; Mineral oils and fluids based on phosphate ester-based hydraulic oils
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

"Low variation in length (<+ -1%) at operating pressure. Low volume expansion. We manufacture thermoplastic hose assemblies in accordance to your specifications. On request, each hose assembly made by Indunorm Hydraulik is tested with the appropriate test pressure and confirmed by protocol."
