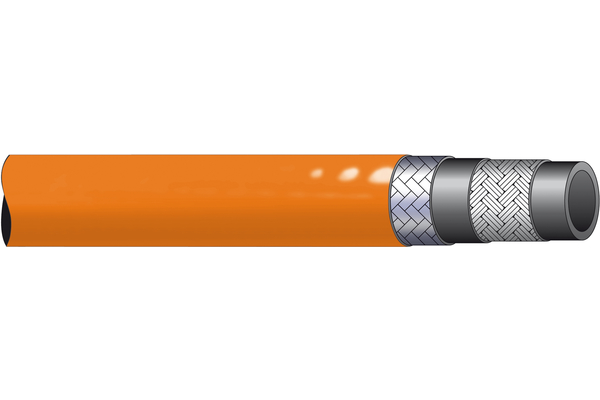

TP10HS/NC04 - 700 bar thermoplastic hose for hydraulic tools

Product info

DN:	04
Size:	02
Inch:	1/8
Outer Ø [mm]:	9,1
Inner Ø [mm]:	4,0
bending radius [mm]:	25
working pressure [bar]:	700
burst pressure [bar]:	2800
Safety factor:	4:1
Standard ferrule:	XJ02HL
Standard ferrule stainless steel:	XJ02HL
Weight [kg]:	0,59
Static test pressure [bar]:	1400
Vacuum [bar]:	0,93 bar; 700 mm Hg\|-13,5 psi; 27,5 inch Hg
Color cover:	orange
Color inner tube:	black
Cover:	Polyurethan, non conductive
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	water and water-based media up to max. + 70 ° C; Mineral oils and fluids based on phosphate ester-based hydraulic oils
Norm/Standards:	The hose meets the SAE J517 / J343 and EN855 standards for nonconductivity, where a maximum electrical leakage of 50 μA is not allowed when a 152 mm long sample is charged with 37.5 KV for 5 minutes. Corresponds to 250 KV / meter.
Reinforcement:	2 layers of Aramid fiber
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C; Mineral oils and fluids based on phosphate ester-based hydraulic oils
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

"Low variation in length (<+ -1%) at operating pressure. Low volume expansion. We manufacture thermoplastic hose assemblies in accordance to your specifications. On request, each hose assembly made by Indunorm Hydraulik is tested with the appropriate test pressure and confirmed by protocol."
