TP2-08

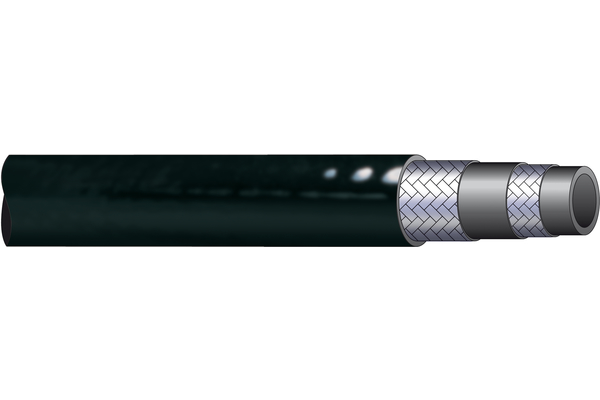

Hose with pressure level according to SAE 100 R2 TP2

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Outer Ø [mm]:	14,8
  Inner Ø [mm]:	8,1
  bending radius [mm]:	50
  working pressure [bar]:	400
  burst pressure [bar]:	1600
  Safety factor:	4:1

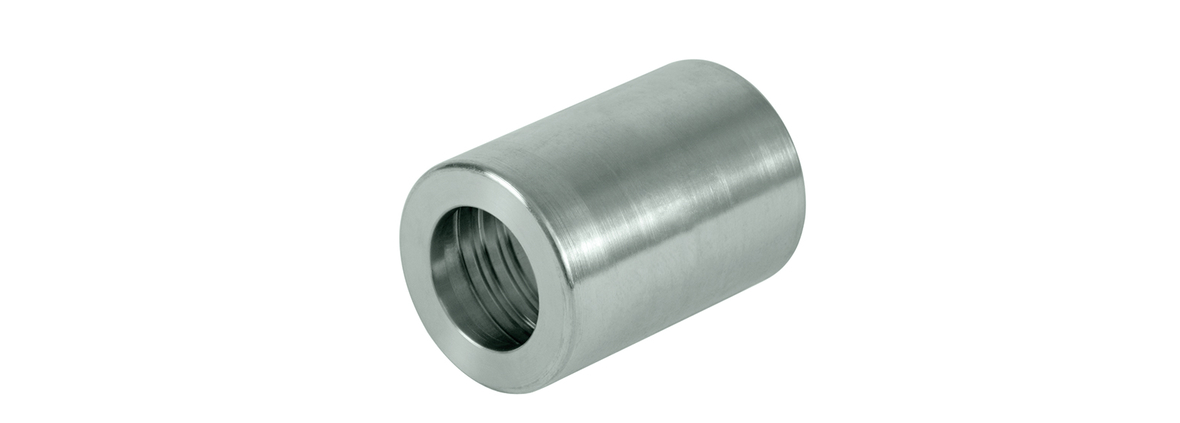

  Standard ferrule:	XV05R2
  Weight [kg]:	0,315
  Static test pressure [bar]:	800
  Color cover:	black
  Color inner tube:	black
  Cover:	Polyurethan
  Inner tube:	Seamless extruded polyester tube (PEL)
  MSHA-Approval:	no
  Media:	Mineral oils and fluids based on phosphate ester-based hydraulic oils, greases
  Norm/Standards:	SAE 100 R2
  Reinforcement:	of high tensile, brass plated steel wire, antifriction liner to improve the pulse load
  Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
  application:	high pressure applications
  max operating temperature [°C]:	+ 100°C
  number of layers:	2
