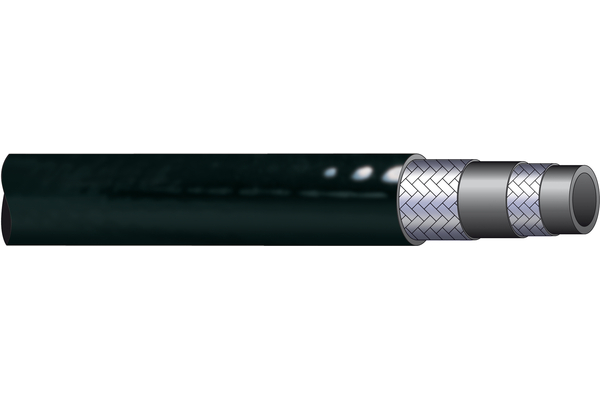

TP2 (according to SAE 100 R2)

Thermoplastic hose for high pressure applications, according to SAE 100 R2. Accurate control of your hydraulic system through maximum working pressure of the TP hoses. Our TP hoses are characterized by high resistance to weathering, aging and abrasion.

To accessories

Detail

Art. No.

TP2-06

TP2-08

TP2-10

TP2-12

TP2-16

TP2-20

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

12,8

14,8

16,8

20,2

23,5

27,8

Inner Ø [mm]

6,4

8,1

9,8

13,0

16,3

19,5

bending radius [mm]

115

170

working pressure [bar]

400

330

260

220

150

burst pressure [bar]

1600

1320

1040

880

600

Safety factor

4:1

Standard ferrule

XV04R2

XV05R2

XV06R2

XV08R2

XV10R2

XV12R2

Weight [kg]

0,245

0,315

0,375

0,450

0,560

0,715

Static test pressure [bar]

800

660

520

440

300

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Polyurethan
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic oils, greases
Norm/Standards:	SAE 100 R2
Reinforcement:	of high tensile, brass plated steel wire, antifriction liner to improve the pulse load
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
application:	high pressure applications
max operating temperature [°C]:	+ 100°C
number of layers:	2
