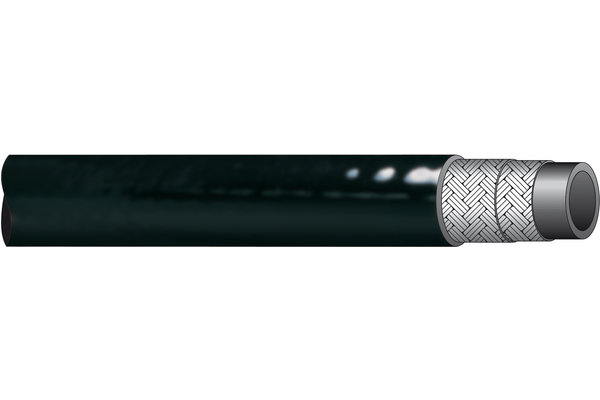

TP-BF08
TP-BF, TP-BF-Z

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Outer Ø [mm]:	14,9
  Inner Ø [mm]:	8,0
  bending radius [mm]:	80
  working pressure [bar]:	317
  burst pressure [bar]:	950
  Safety factor:	3:1
  Standard ferrule:	R05BF-T
  Weight [kg]:	13,5
  Color cover:	black
  Color inner tube:	black
  Cover:	DN4=Polyamid, DN6-DN12=Polyurethan
  Inner tube:	Polyamid tube (PA11)
  MSHA-Approval:	no
  Norm/Standards:	DIN 20024
  Reinforcement:	Polyester fiber
  Temperature range [°C]:	- 60 °C up to + 100 °C
  application:	lubrication line, forklifts and mobile hydraulics (e.g. tilt function for truck cabs)
  max operating temperature [°C]:	shor term + 120 °C
  number of layers:	2
