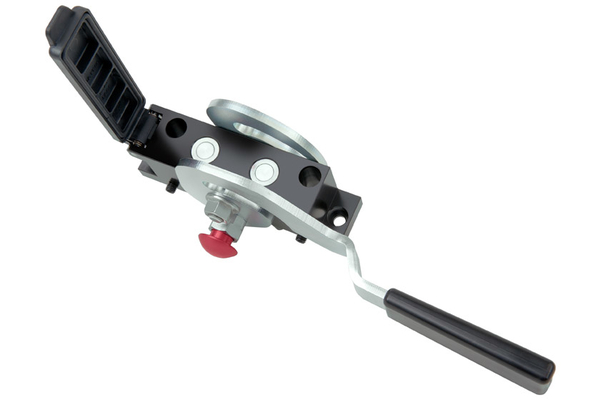

MST-PB (PB06) female coupling DN10 - Cr III

Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Can be coupled under residual pressure (up to 350 bar). Blocking on both sides, easy connecting and disconnecting via lever system

To accessories

Detail

Art. No.

MST-PB06-2H08BM-10M

MST-PB06-2H06BSP10M

MST-PB06-2-08BSP10M

MST-PB062H22CEL1510M

Size

working pressure [bar]

250

Thread + standard

BSP male-thread 60° ISO 8434-6

BSP female-thread ISO 1179-1

Metric male-thread ISO 8434-1-L

Thread [GA]

1/2"

3/8"

1/2"

M22x1,5

Pipe Ø R [mm]

15L

Number of hydraulic inserts

Series

Manufacturer ID number

2PB06-2-16/DGFC

2PB06-2-38G FC

2PB06-2-12G FC

2PB06-2-2/22FC

max. number of hydraulic plugs

l/min at ΔP=2 bar

Quantity

Product info

Technical data

Applications:	industry, agricultural technology , power units, construction machines
Female or male coupling:	Sleeve
Material:	Aluminium & Steel
Material sealing:	NBR & PUR
Resistance against red rust [h]:	500
Surface:	MATE 500 (CrIII)
Temperature range [°C]:	-25°C / +100°C
