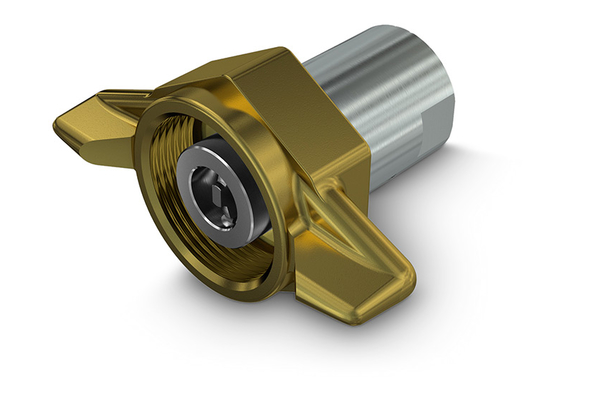

CVE male coupling

Similar image
Similar image

Screw-to-connect couplings for road machines applications

To accessories

Detail

Art. No.
CVE 34 GAS M
%
SALE
CVE 1 GAS M
%
SALE
DN
20
25
Size
12
16
working pressure [bar]
360
300
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
Thread [GA]
3/4"
1"

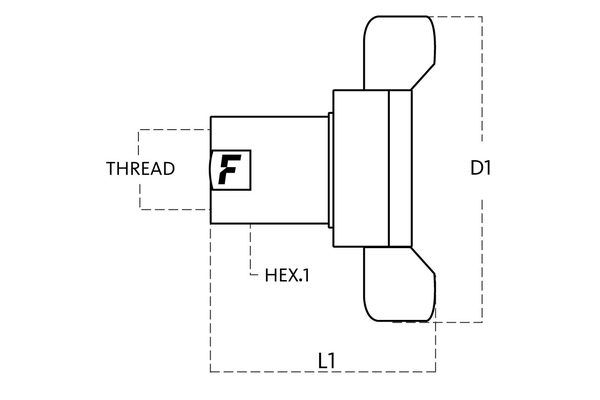

Outer Ø plug [mm]
100,0
127,0
Length plug [mm]
84,0
94,4
SW [mm]
34
41
SW1 [mm]
34
41
l/min at ΔP=2 bar
120
160
Quantity


Product info

  • Technical data
    Applications: Road machines
    Female or male coupling: Plug
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Surface: MATE 500 (CrIII)
    Temperature range [°C]: -25 °C to 125 °C

Benefit

Couplings designed for the transport industry. Composed by a screw-on sleeve (brass) and wings nuts with hexagon shape.
