CVE 1 GAS M

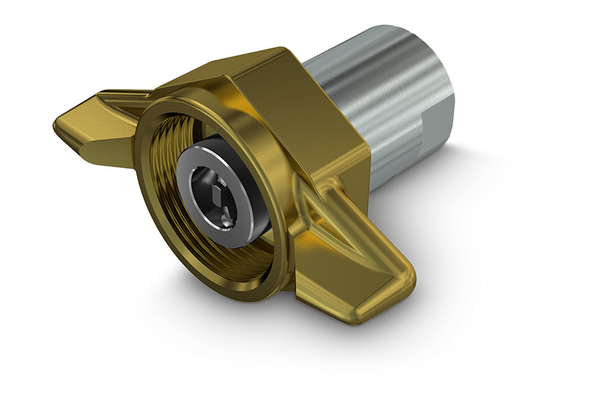

Faster CVE-plug

Product info

• Technical data

  DN:	25
  Size:	16
  working pressure [bar]:	300
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1"

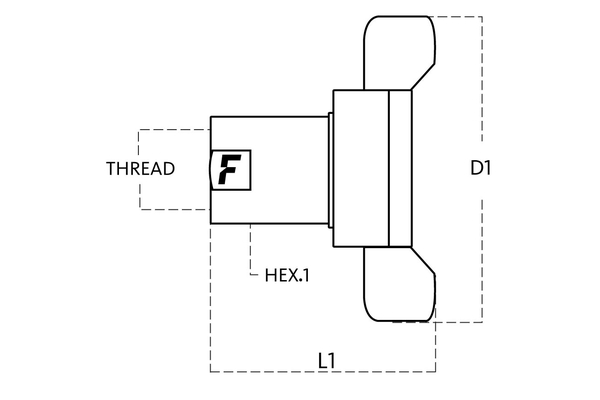

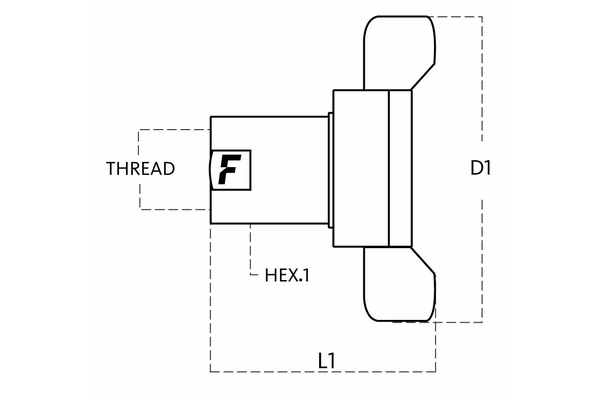

  Outer Ø plug [mm]:	127,0
  Length plug [mm]:	94,4
  SW [mm]:	41
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	160
  Applications:	Road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
