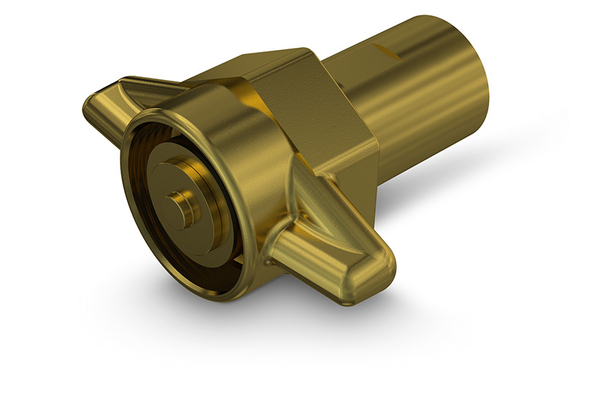

Faster FB female coupling

Similar image
Similar image

screw-to-connect couplings for road machines applications

To accessories

Detail

Art. No.
FB 12/12 NPT F5
%
SALE
FB 12/34 NPT F5
%
SALE
FB 16/1 NPT F 5
%
SALE
FB 20/114NPT F5
%
SALE
FB 24/112NPT F5
%
SALE
Size
4
4
6
8
DN
20
20
25
32
38
Size
12
12
16
20
24
Inch
3/4"
3/4"
1"
working pressure [bar]
250
250
230
220
200
Thread + standard
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
Thread [GA]
1/2"
3/4"
1"
1.1/4"
1.1/2"

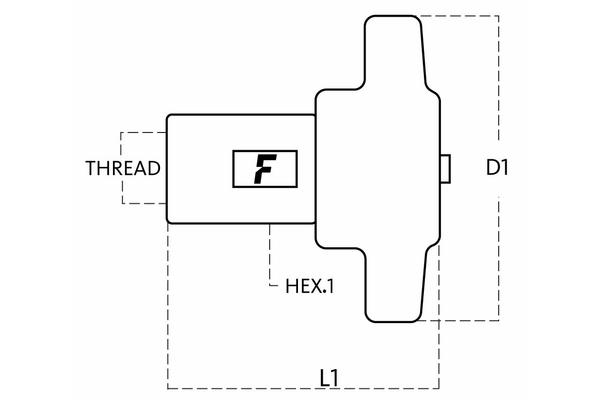

Outer Ø sleeve [mm]
90,0
90,0
75
127,0
150,0
Length sleeve [mm]
81,0
81,0
90,8
95,0
110,2
SW1 [mm]
30
30
36
45
50
l/min at ΔP=2 bar
62
62
160
220
300
Quantity


Product info

  • Technical data
    Applications: road machines applications
    Female or male coupling: Sleeve
    Material Casing: Brass
    Material sealing: NBR
    Temperature range [°C]: -25 °C to 125 °C

Benefit

Screw-on flat face brass couplings suitable to vehicles and road machines applications. A wing-shaped sleeve helps to connect and disconnect by hand. Interchangeable for US market.
