FB 16/1 NPT F 5
Faster FB-Sleeve

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1"
  working pressure [bar]:	230
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1"

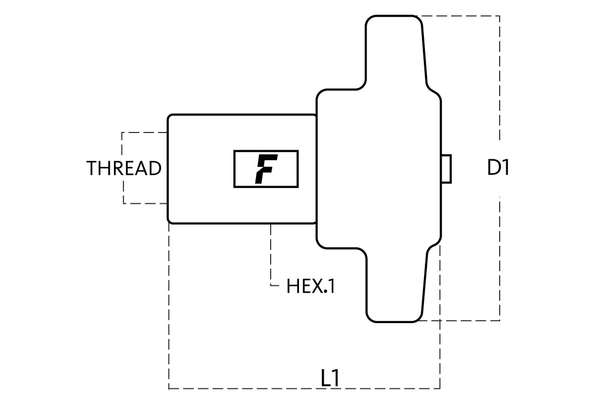

  Outer Ø sleeve [mm]:	75
  Length sleeve [mm]:	90,8
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	160
  Applications:	road machines applications
  Female or male coupling:	Sleeve
  Material Casing:	Brass
  Material sealing:	NBR
  Temperature range [°C]:	-25 °C to 125 °C
