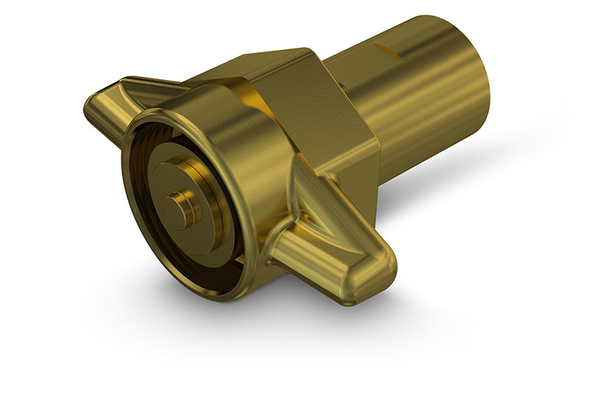

FB 12/34 NPT F5
Faster FB-Sleeve

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4"
  working pressure [bar]:	250
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	3/4"

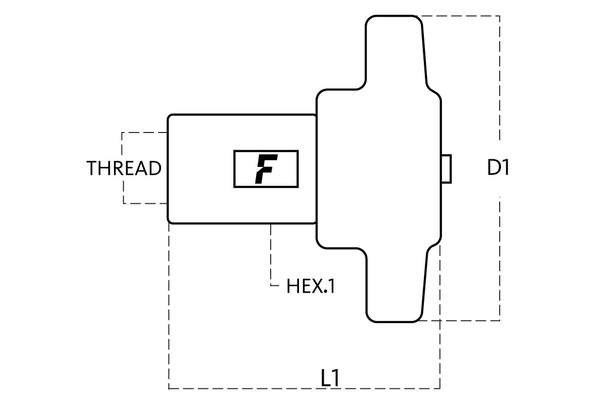

  Outer Ø sleeve [mm]:	90,0
  Length sleeve [mm]:	81,0
  SW1 [mm]:	30
  l/min at ΔP=2 bar:	62
  Applications:	road machines applications
  Female or male coupling:	Sleeve
  Material Casing:	Brass
  Material sealing:	NBR
  Temperature range [°C]:	-25 °C to 125 °C
