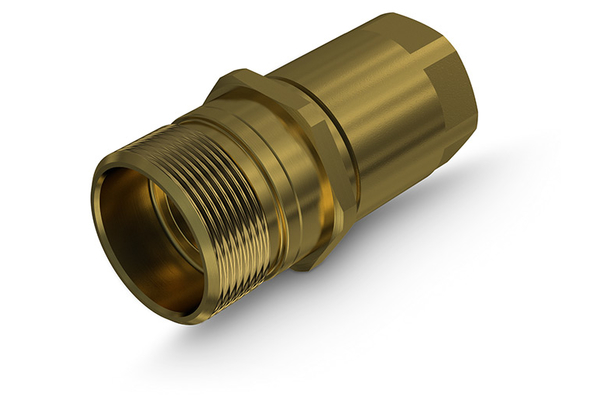

FB 12/12 NPT M5
Faster FB-Plug

Product info

• Technical data

  DN:	20
  Size:	12
  working pressure [bar]:	250
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1/2"

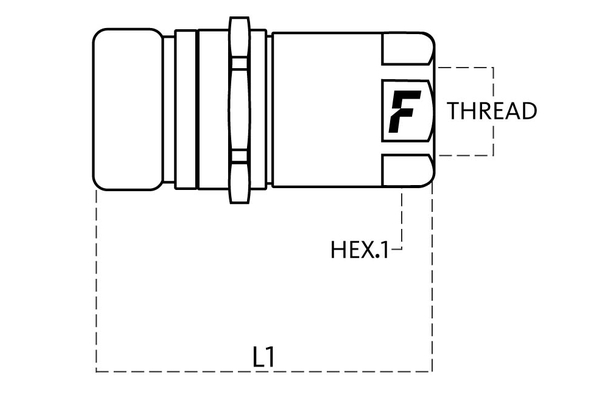

  Outer Ø plug [mm]:	45,0
  Length plug [mm]:	81,3
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	62
  Applications:	road machines applications
  Material Casing:	Brass
  Material sealing:	NBR
  Temperature range [°C]:	-25 °C to 125 °C
