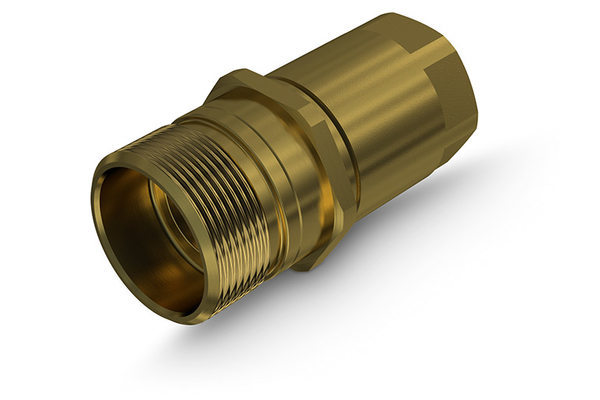

Faster FB male coupling

Detail

Size
4
DN
20
20
25
32
38
Size
12
12
16
20
24
working pressure [bar]
250
250
230
210
200
Thread + standard
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
Thread [GA]
1/2"
3/4"
1"
1.1/4"
1.1/2"
Outer Ø plug [mm]
45,0
45,0
44,0
60,0
72,0

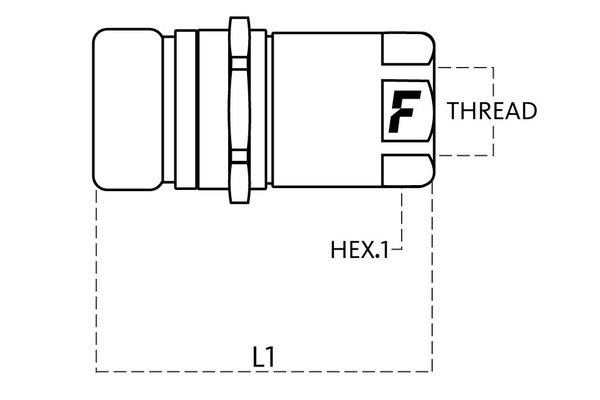

Length plug [mm]
81,3
82,0
89,0
97,0
110,0
SW1 [mm]
34
34
40
48
55
l/min at ΔP=2 bar
62
62
160
220
300
Quantity


Product info

  • Technical data
    Applications: road machines applications
    Material Casing: Brass
    Material sealing: NBR
    Temperature range [°C]: -25 °C to 125 °C

Benefit

Screw-on flat face brass couplings suitable to vehicles and road machines applications. A wing-shaped sleeve helps to connect and disconnect by hand. Interchangeable for US market.
