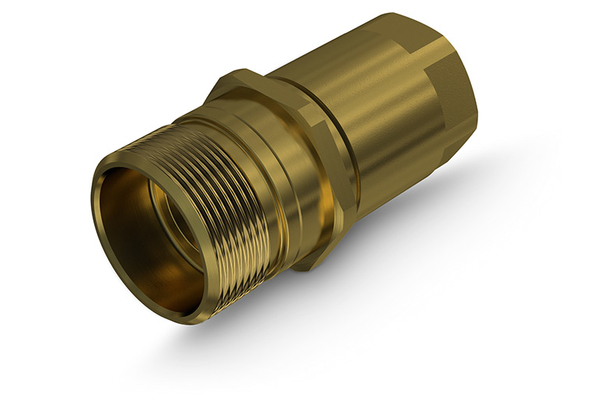

FB 20/114NPT M5
Faster FB-Plug

Product info

• Technical data

  DN:	32
  Size:	20
  working pressure [bar]:	210
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1.1/4"

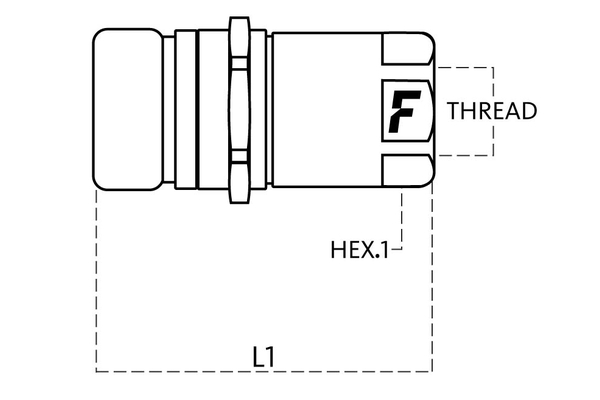

  Outer Ø plug [mm]:	60,0
  Length plug [mm]:	97,0
  SW1 [mm]:	48
  l/min at ΔP=2 bar:	220
  Applications:	road machines applications
  Material Casing:	Brass
  Material sealing:	NBR
  Temperature range [°C]:	-25 °C to 125 °C
