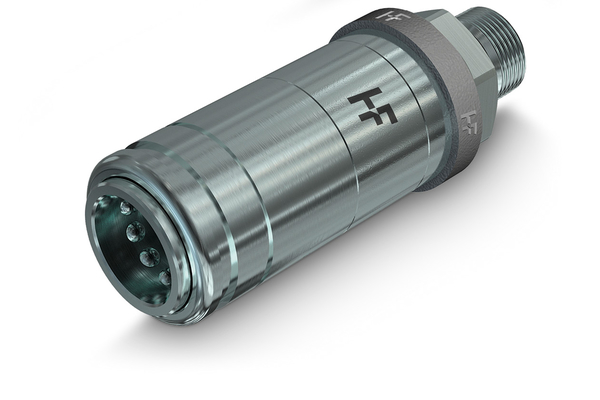

4SRHF female coupling

Push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

To accessories

Detail

Art. No.

4SRHF081/2215 F

4SRHF08 12GAS F

4SRHF0819/2215 F

4SRHF087/1815 F

4SRHF087/2215 F

4SRHF0821/2215 F

Size

Inch

1/2

working pressure [bar]

250

Thread + standard

Metric screw-in thread with o-ring ISO 6149-2

BSP female-thread ISO 1179-1

Metric banjo DIN 7643

Metric bulkhead-thread short ISO 8434-1-L

Metric bulkhead short ISO 8434-1-L

Metric screw-in thread with elastic seal ISO 9974-2

Thread [GA]

M22x1,5

1/2

M22x1,5

M18x1,5

M22x1,5

Pipe Ø R [mm]

12L

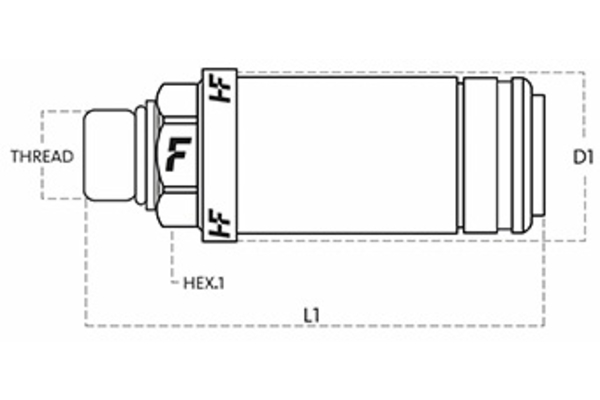

Outer Ø sleeve [mm]

42,0

Length sleeve [mm]

109,7

106,2

133,7

121,2

122,4

109,2

SW [mm]

Can be coupled under pressure

Female or male half up to 250 bar

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Technical data

Applications:	Agriculture
Female or male coupling:	Sleeve
Material Casing:	Steel
Material sealing:	PUR
Resistance against red rust [h]:	500
Standard:	ISO 7241-A
Surface:	Mate 500 (CrIII)
Temperature range [°C]:	-25 °C to 100 °C

Benefit

Push-pull coupling for high flow rate applications, connectable under residual pressure in both male and female side. Can be screwed directly into valve ports or rigid pipes. Breakaway function. ISO 7241 part A interchange. Flow rate up to 250 l/min.
