4SRHF08 12GAS F

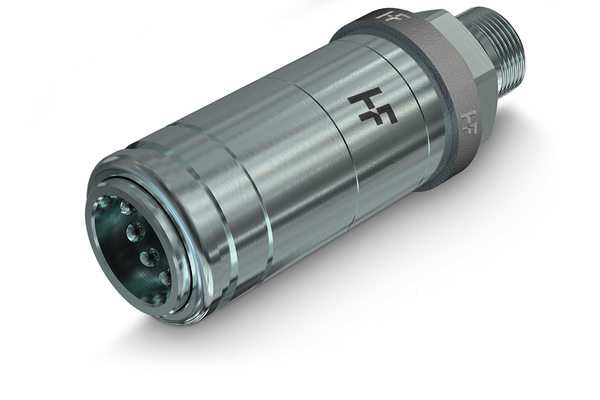

Faster 4SRHF-Sleeve

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	250
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1/2

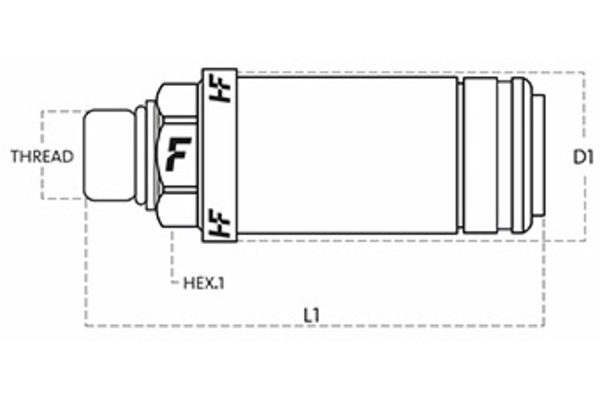

  Outer Ø sleeve [mm]:	42,0
  Length sleeve [mm]:	106,2
  SW [mm]:	27
  Can be coupled under pressure:	Female or male half up to 250 bar
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	70
  Applications:	Agriculture
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	PUR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 100 °C
