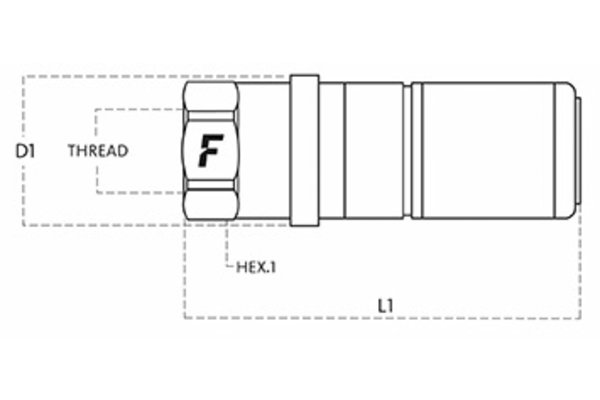

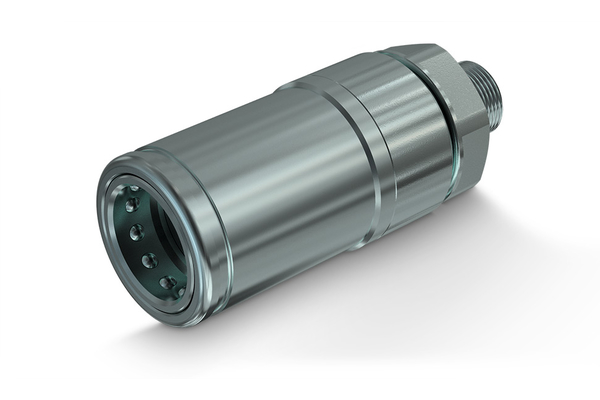

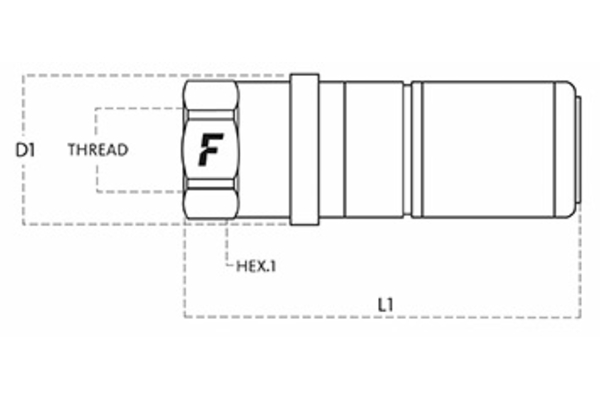

CFPV female coupling

Similar image
Similar image

Push-pull female couplings for agriculture. ISO 7142-1A.

To accessories

Detail

Art. No.
CFPV06 14GAS F
%
SALE
CFPV061/1215 F
%
SALE
CFPV061/1415 F
%
SALE
CFPV067/1415 F
%
SALE
CFPV12 34GAS F
%
SALE
CFPV121/2215 F
%
SALE
CFPV121/272 F
%
SALE
CFPV1212/34S F
%
SALE
CFPV125/2615 F
%
SALE
CFPV125/302 F
%
SALE
CFPV125/362 F
%
SALE
CFPV126/302 F
%
SALE
CFPV126/362 F
%
SALE
Size
2
2
2
2
4
4
4
4
4
4
4
4
4
DN
10
10
10
10
20
20
20
20
20
20
20
20
20
Size
06
06
06
06
12
12
12
12
12
12
12
12
12
Inch
3/8
3/8
3/8
3/8
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
3/4
working pressure [bar]
300
300
300
300
250
250
250
250
250
250
250
250
250
Thread + standard
BSP female-thread ISO 1179-1
Metric screw-in thread with o-ring ISO 6149-2
Metric screw-in thread with o-ring ISO 6149-2
Metric bulkhead short ISO 8434-1-L
BSP female-thread ISO 1179-1
Metric screw-in thread with elastic sealing ISO 9974-2
Metric screw-in thread with o-ring ISO 6149-1
ORFS (UN) Bulkhead ISO 8434-3
Metric bulkhead ISO 8434-1-L
Metric bulkhead ISO 8434-1-L
Metric bulkhead ISO 8434-1-L
Metric bulkhead ISO 8434-1-S
Metric bulkhead ISO 8434-1-S
Thread [GA]
1/4
M12x1,5
M14x1,5
M14x1,5
3/4
M22x1,5
M27x2
1.3/16
M26x1,5
M30x2
M36x2
M30x2
M36x2
Pipe Ø R [mm]
8L
18L
22L
28L
20S
25S
Outer Ø sleeve [mm]
31,0
31,0
31,0
31,0
48,0
48,0
48,0
48,0
48,0
48,0
48,0
48,0
48,0
Length sleeve [mm]
85,0
89,8
89,8
98,3
116,5
118,0
121,5
140,5
153,5
134,5
143,6
144,5
138,5
SW [mm]
27
27
27
27
42
42
42
42
42
42
42
42
42
SW2 [mm]
38
36
41
46
41
48
SW1 [mm]
27
27
27
27
42
42
42
42
42
42
42
42
42
l/min at ΔP=2 bar
30
30
30
30
160
160
160
160
160
160
160
160
160
Quantity


Product info

  • Technical data
    Applications: Agriculture
    Female or male coupling: Sleeve
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Standard: ISO 7241-1A
    Surface: Mate 500 (Cr III)
    Temperature range [°C]: -25 °C to 125 °C

Benefit

Push-pull female couplings with breakaway function. Not suitable for connection under pressure. Commonly used for Power Beyond applications. ISO 7241 part A interchange.
