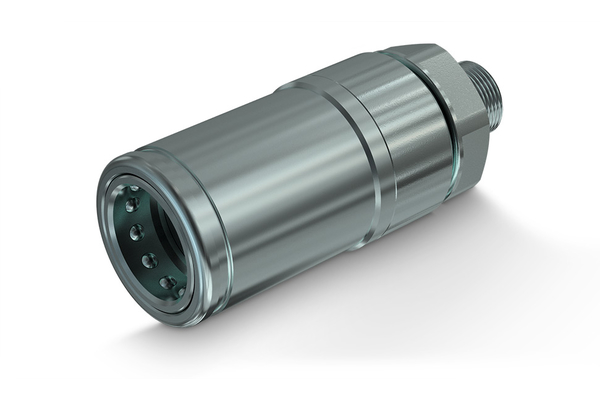

CFPV121/272 F
Faster CFPV-Sleeve

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	Metric screw-in thread with o-ring ISO 6149-1
  Thread [GA]:	M27x2
  Outer Ø sleeve [mm]:	48,0
  Length sleeve [mm]:	121,5
  SW [mm]:	42
  SW1 [mm]:	42
  l/min at ΔP=2 bar:	160
  Applications:	Agriculture
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1A
  Surface:	Mate 500 (Cr III)
  Temperature range [°C]:	-25 °C to 125 °C
