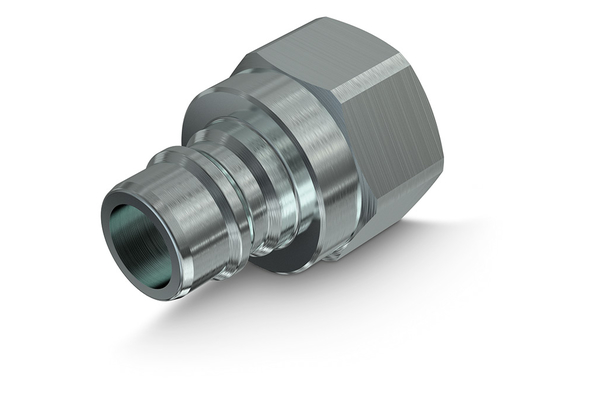

TNL male coupling

Standard couplings, free flow

To accessories

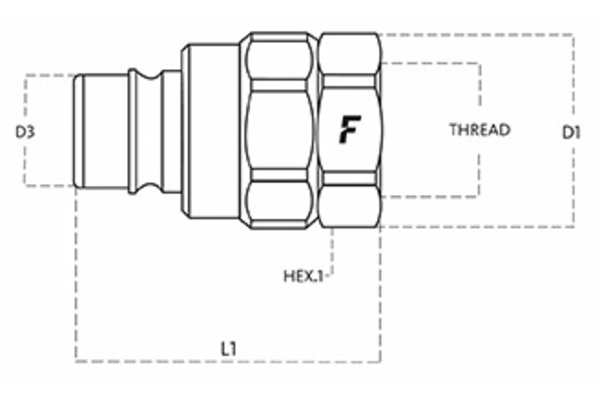

Detail

Art. No.

TNL 04 NPT M

TNL 06 NPT M

TNL 08 GAS M

TNL 12 NPT M

Size

Inch

1/4

3/8

1/2

3/4

working pressure [bar]

270

220

190

Thread + standard

NPT female-thread ANSI B1.20.3

BSP female-thread ISO 1179-1

NPT female-thread ANSI B1.20.3

Thread [GA]

1/4

3/8

1/2

3/4

Outer Ø plug [mm]

10,8

12,9

16,0

23,3

Length plug [mm]

49,0

36,0

45,5

SW [mm]

SW1 [mm]

l/min at ΔP=2 bar

170

Quantity

Product info

Technical data

Applications:	Industrial, Oil & Gas
Female or male coupling:	Plug
Material Casing:	Steel
Material sealing:	NBR
Resistance against red rust [h]:	500
Surface:	MATE 500 (CrIII)
Temperature range [°C]:	-25 °C to 125 °C

Benefit

TNL series couplings are commonly used in US market as an alternative to standard series. Assembled without internal valves they have been designed to maximize flow. Fully interchangeable with TNV versions.
