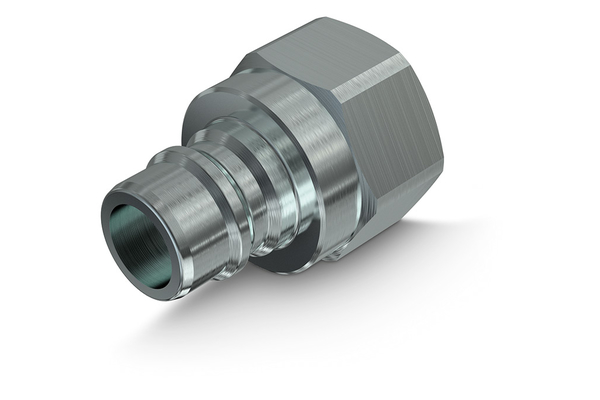

TNL 06 NPT M
Faster TNL-Plug

Product info

• Technical data

  Size:	06
  Inch:	3/8
  working pressure [bar]:	270
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	3/8

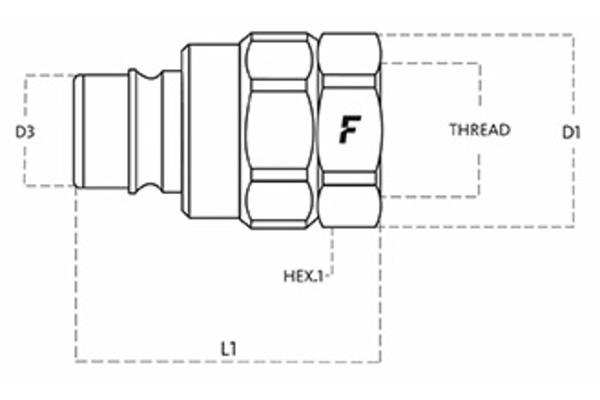

  Outer Ø plug [mm]:	12,9
  Length plug [mm]:	36,0
  SW [mm]:	30
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	65
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
