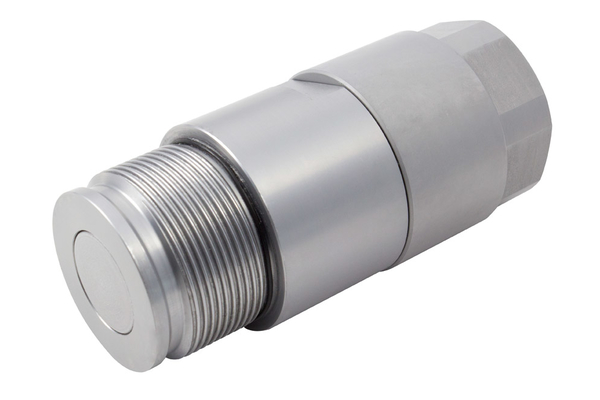

Flat-Face SK-FHV male coupling

Detail

Size
2
3
4
4
4
4
6
6
6
6
6
6
8
3
DN
10
12
20
20
20
20
25
25
25
25
25
25
25
32
32
38
40
38
12
38
38
Size
06
08
12
12
12
12
16
16
16
16
16
16
16
20
20
24
24
24
08
24
24
Inch
3/8
1/2
3/4
3/4
3/4
3/4
1
1
1
1
1
1
1
1.1/4
1.1/4
1.1/2
1.1/2
1.1/2
1/2
1.1/2
1.1/2
working pressure [bar]
530
530
460
460
460
460
530
530
530
530
530
530
530
460
460
460
460
460
530
460
460
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE female-thread ORB ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE female-thread ORB ISO 11926-1
Metric flange ISO 6162-1
Metric Flange ISO 6162-1
BSP female-thread ISO 1179-1
BSP female-thread ORB BS 5380
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
SAE Flange head ISO 6162-2
NPT female-thread ANSI B1.20.3
Metric flange ISO 6162-1
Metric flange ISO 6162-1
Thread [GA]
3/8
1/2
3/4
1
3/4
1.1/16
1
1.1/4
1.5/16
1
1.1/4
1.1/4
1
1.1/4
1.1/4
1.1/2
1.1/2
1.1/2
1/2
1.1/4
1.1/2

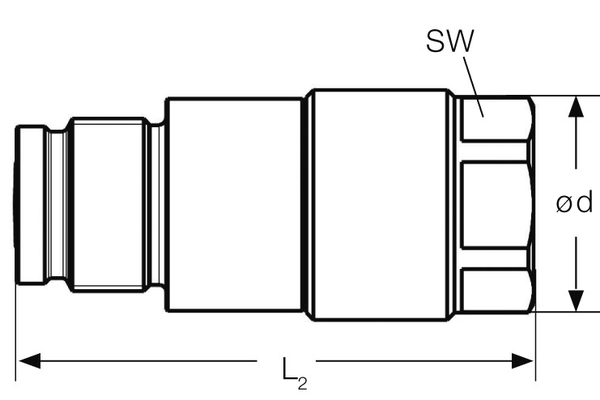

Outer Ø plug [mm]
33,0
44,5
54,5
54,5
54,5
54,5
64,0
64,0
64,0
81,2
94,6
64,0
64,0
68,0
68,0
84,5
84,5
84,5
44,5
94,6
113,3
Length plug [mm]
96,8
109,5
122,5
124,3
122,3
122,5
143,4
143,8
143,8
150,5
150,5
143,8
143,8
165,8
165,8
187,1
187,1
247
109,5
185,0
197,0
SW1 [mm]
36
36
46
55
55
75
Ø D [mm]
70
SW1 [mm]
36
36
46
46
46
46
55
55
55
55
55
55
55
55
55
75
75
75
36
75
75
l/min at ΔP=2 bar
32
70
120
120
120
120
200
200
200
200
200
200
200
350
350
420
420
70
420
420
Quantity


Product info

  • Technical data
    Applications: construction machines, industry, vehicle & road machines
    Female or male coupling: Plug
    Material Casing: Steel
    Material sealing: FKM & PUR
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: MATE 1000 (ZnNi)
    Temperature range [°C]: -25 °C to +100 °C
