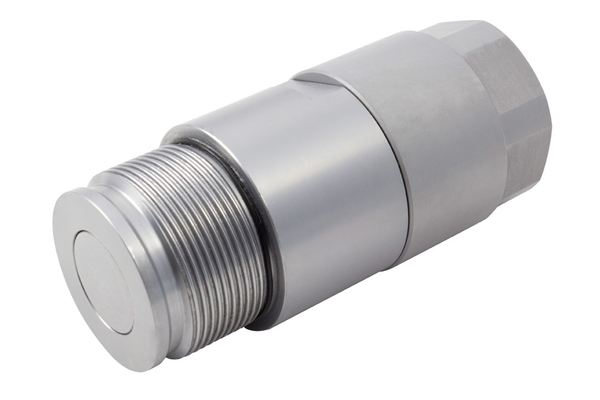

SK-FHV24SFH76-40S
Screw coupling series SK-FHV (male)

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  working pressure [bar]:	460
  Thread + standard:	SAE Flange head ISO 6162-2
  Thread [GA]:	1.1/2

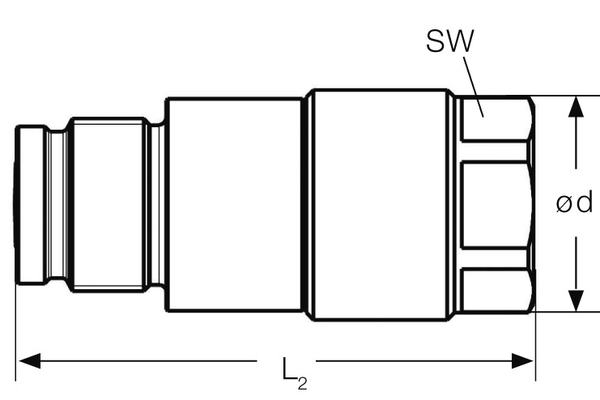

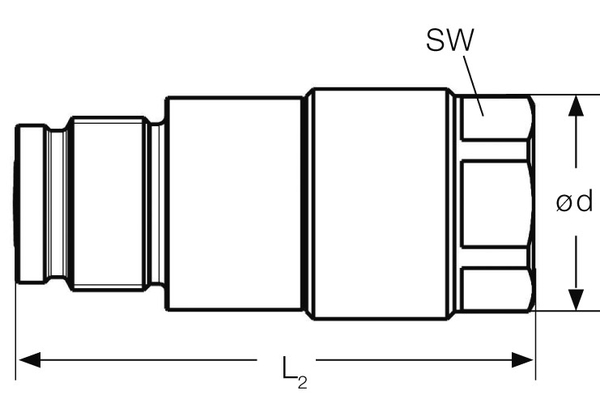

  Outer Ø plug [mm]:	84,5
  Length plug [mm]:	247
  SW1 [mm]:	75
  l/min at ΔP=2 bar:	420
  Applications:	construction machines, industry, vehicle & road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	FKM & PUR
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	MATE 1000 (ZnNi)
  Temperature range [°C]:	-25 °C to +100 °C
