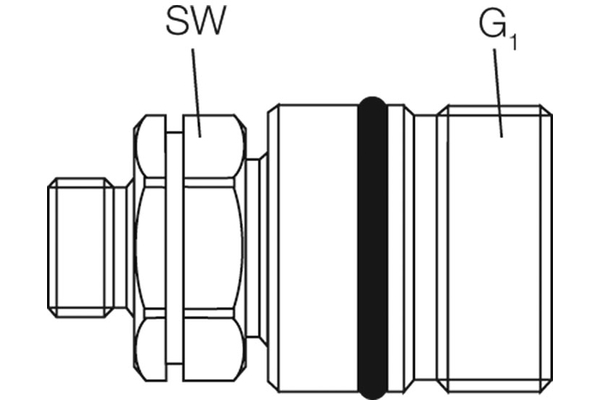

SK-CVC female coupling

Similar image
Similar image

For applications in the construction industry (CAT coupling)

To accessories

Detail

Art. No.
SK-CVC14UNF12M
%
SALE
SK-CVC08BSP12M
%
SALE
SK-CVC0-22M12M
%
SALE
SK-CVC2-18CEL12-12M
%
SALE
SK-CVC19UNF25M
%
SALE
SK-CVC30M25M
%
SALE
Size
3
3
6
DN
12
12
12
12
25
25
Size
08
08
08
08
16
16
Inch
1/2
1/2
1/2
1/2
1
1
working pressure [bar]
340
340
340
340
340
340
Thread + standard
0/ SAE ISO 11926-1
BSP female DIN 3852
BSP female DIN 3852, with O-Ring Port
02/ METRIC - ISO 8434-1-L
0/ SAE ISO 11926-1
metric female thread DIN 3852
Thread [GA]
7/8"-14 UNF FEMALE ORB
1/2
M22x1,5
M18x1,5 MALE 12L
1-3/16"-12 UN FEMALE ORB
M30x1,5
Outer Ø sleeve [mm]
35
35,0
35,0
35
54
54,0
Connection thread
Rd35x2
Rd35x2
Rd54x3
Length sleeve [mm]
62
60,9
60,9
56
97
97,1
Wrench size connection side sleeve
27
27
42
SW2 [mm]
42
SW1 [mm]
30
27
27
27
42
42
SW1 [mm]
27
42
l/min at ΔP=2 bar
50
50
50
50
160
160
Quantity


Product info

Benefit

designed for heavy duty applications. Widely installed at leading OEMs (such as CATERPILLAR)

Accessories

dust protection

Practical tip

You might connect against residual pressure (one way, either male or female part)
