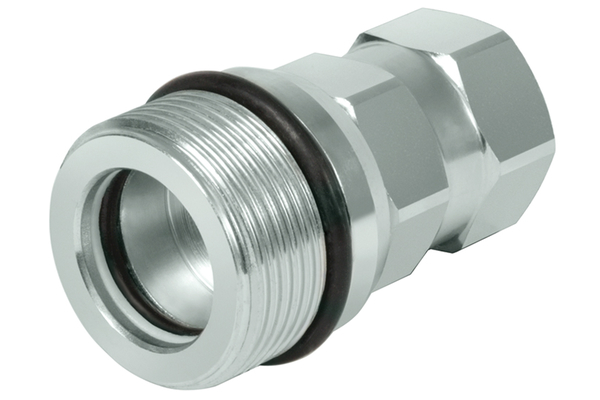

SK-CVC19UNF25M
Screw coupling series SK-CVC (female)

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	340
  Thread + standard:	0/ SAE ISO 11926-1

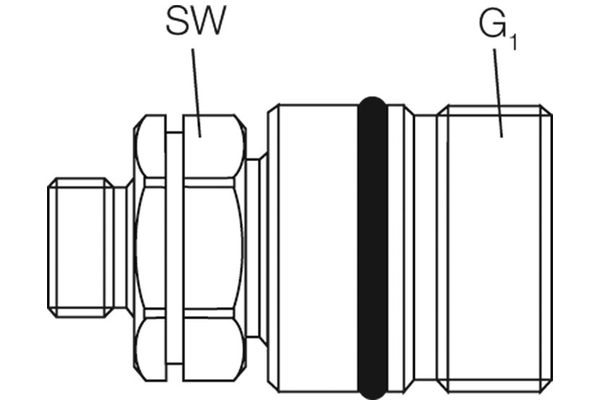

  Thread [GA]:	1-3/16"-12 UN FEMALE ORB
  Outer Ø sleeve [mm]:	54
  Length sleeve [mm]:	97
  SW2 [mm]:	42
  SW1 [mm]:	42
  SW1 [mm]:	42
  l/min at ΔP=2 bar:	160
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Product title long:	. Series SK-CVC female coupling
  Product title short:	female coupling
  Surface:	galvanised and Cr III passivated
  Temperature range [°C]:	-25°C / +125 °C
