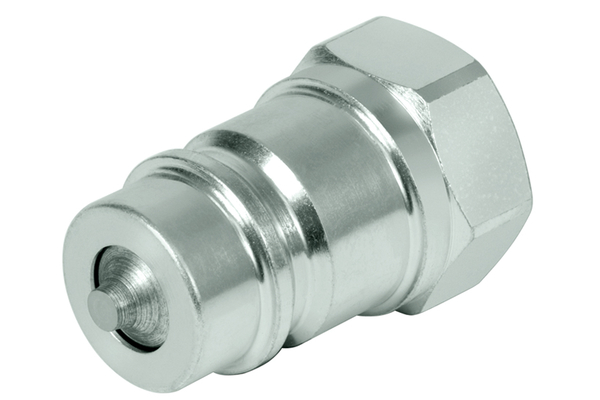

Valcon® VC-NV male coupling

Similar image
Similar image

standard coupling for general applications (e.g. agriculture). DN12 (size 1/2") is interchangeable according to ISO 7241-1A

To accessories

Detail

Art. No.
VC-NV-IG1/4-06S
%
SALE
VC-NV-IG3/8-10S
%
SALE
VC-NV-IG1/2-12S
%
SALE
VC-NV-IG3/4-20S
%
SALE
VC-NV-IG1-25S
%
SALE
Size
1
2
3
6
8
DN
06
10
12
20
25
Size
04
06
08
12
16
Inch
1/4"
3/8"
1/2"
3/4
1"
working pressure [bar]
350
300
300
300
250
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
Thread [GA]
1/4"
3/8"
1/2"
3/4"
1
Outer Ø plug [mm]
14,3
19,0
20,6
28,0
31,3
Length plug [mm]
36,0
40,0
50,7
61,3
64,0
SW [mm]
19
24
27
34
41
SW1 [mm]
19
24
27
34
41
l/min at ΔP=2 bar
12
28
50
100
180
L1 [mm]
74,2
80,2
92,3
107,8
128,8
Quantity


Product info

  • Technical data
    Applications: General application (e.g. agriculture)
    Female or male coupling: Female
    Material: C-steel, nitrified
    Material Casing: Steel
    Material sealing: NBR
    Material support ring: PTFE
    Resistance against red rust [h]: 200
    Resistance against white rust [h]: 400
    Surface: Chrome III
    Temperature range [°C]: -20°C up to +100°C

Accessories

dust protection
