VC-NV-IG3/4-20S

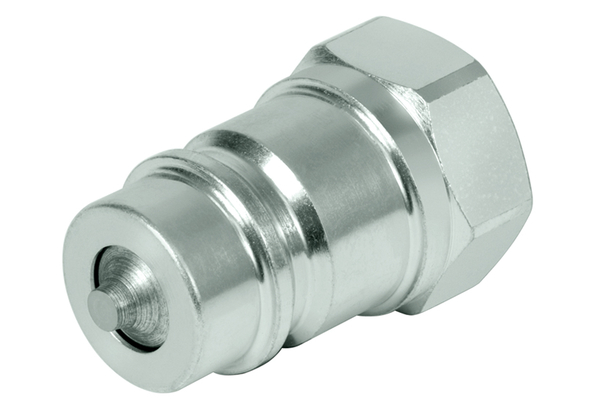

Valcon® Plug-in coupling series VC-NV male

Product info

• Technical data

  Size:	6
  DN:	20
  Size:	12
  Inch:	3/4
  Working pressure [bar]:	300
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/4"
  Outer Ø plug [mm]:	28,0
  Length plug [mm]:	61,3
  SW [mm]:	34
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	100
  L1 [mm]:	107,8
  Applications:	General application (e.g. agriculture)
  Female or male coupling:	Female
  Material:	C-steel, nitrified
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Product title long:	Series VC-NV male coupling. Series ST-SV male coupling
  Product title short:	male coupling
  Resistance against red rust [h]:	200
  Resistance against white rust [h]:	400
  Surface:	Chrome III
  Temperature range [°C]:	-20°C up to +100°C
