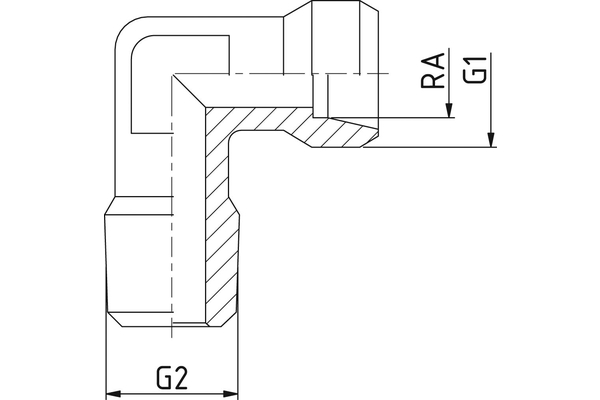

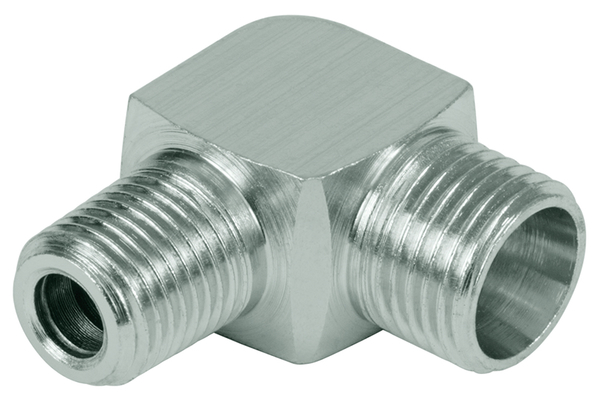

Angle male union WE/K (tapered) inch/body

Detail

working pressure [bar]
100
100
100
315
315
burst pressure [bar]
400
400
400
1260
1260
Pipe Ø R [mm]
4
6
8
10
8
Thread [G1]
M8x1
M10x1
M12x1
M16x1,5
M14x1,5
Thread [G2]
R 1/8" K
R 1/8" K
R 1/8" K
R 1/4" K
R 1/4" K
Series
LL
LL
LL
L
L
SW1 [mm]
9
9
12
14
12
Quantity


Product info

  • Specifications
    Connection type 1: Metric 24°
    Connection type 2: Inch cone-shaped
    Construction form: Angle 90°
    Description: Angle screw-in connection, inch, conical
    Material: ST-l
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free
