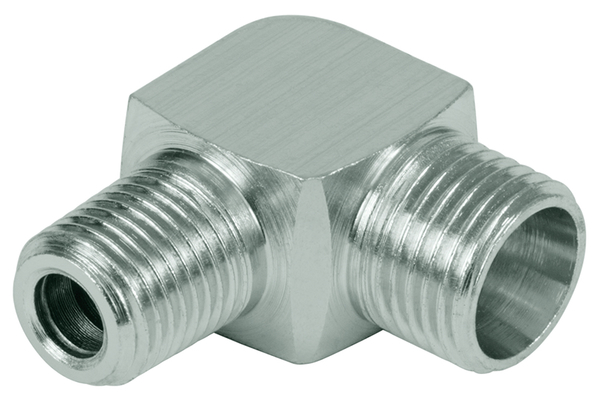

RV10WE-LR/K/KÖ

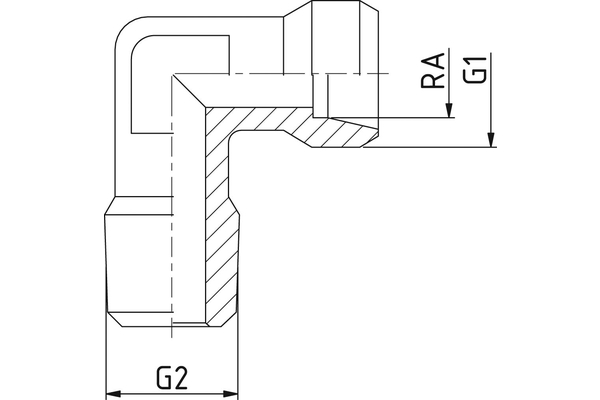

Screw-in connection WE/K (tapered)

Product info

• Specifications

  working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	10
  Thread [G1]:	M16x1,5
  Thread [G2]:	R 1/4" K
  Series:	L
  SW1 [mm]:	14
  Connection type 1:	Metric 24°
  Connection type 2:	Inch cone-shaped
  Construction form:	Angle 90°
  Description:	Angle screw-in connection, inch, conical
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
